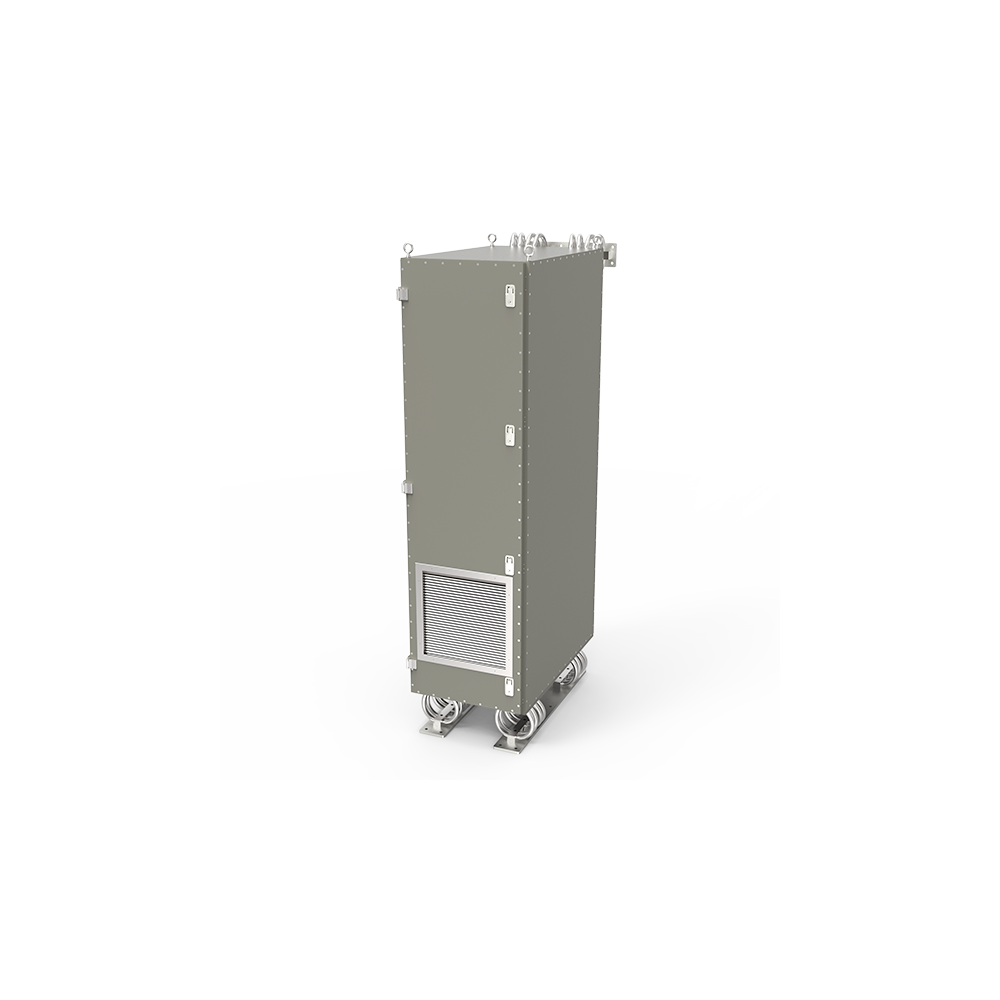

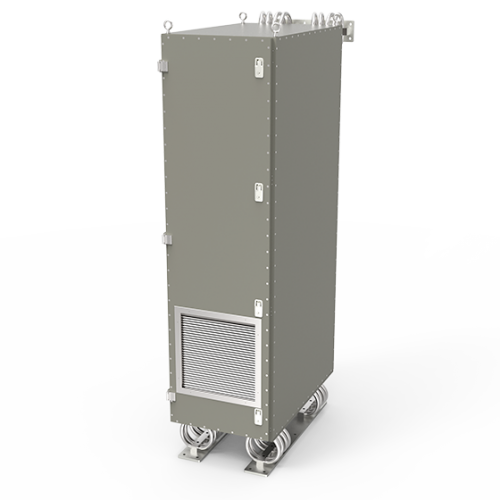

STRONGHOLD - Rugged Cabinet

EMI/EMC Shielded

Designed with features such as EMI gaskets, internal grounding bars, and EMI shielded air openings our STRONGHOLD protects are designed to meet MIL-STD-461 certification.

Shock and Vibe Isolation

Base and wall isolators are sized per the payload to minimize transmitted shock to the cabinets and their contents to meet the MIL-STD-901 certification.

Customizable

Both the chassis and feature set can be customized to customer-specific requirements. Available in a wide range of heights and depths as well as the ability to configure the number and location of the 19” EIA-310 vertical rails.

Contact us for more information.

Key Specifications:

• Designed with features to meet MIL-S-901D/DTL-901E, MIL-STD-461, MIL-STD-810, MIL-STD-1310
• Rugged aluminum bolt-together design
• EMI gaskets provide EMI and drip-proof protection
• Exhaust fan assembly provides forced air cooling
• Air openings are EMI shielded and louvered downwards for drip proof protection
• Air intake contains a removable and cleanable dust filter
• Shock and vibration isolators are sized according to payload weight to minimize transmitted shock
• Internal grounding bus bar connects to an external ground point
• Electronics mounted via standard 19” EIA-310 vertical rails
• INCLUDES: Key lockable door latches, positive locking door stop, lifting eyebolts
• Can be customized to meet additional requirements
• Made in Canada
