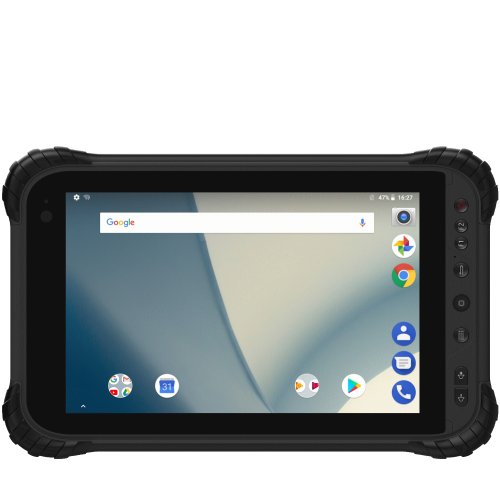

Fieldbook N80G2
Brand:
Logic Instruments

Fieldbook N80G2

Fieldbook P122G2
Rhea - VME Processor Board

The ideal rugged tablet for digital transformation in hostile environments.

Read moreShow less
Request for Quote
Add to wishlist
Share
Description

Operating System

  • Android 12 with Google Media Suite (GMS)

Processor and Memory

  • Processor: Qualcomm SM4350
  • RAM: 6GB
  • Storage: 128GB eMMC

Screen

  • Diagonal Size: 8" IPS with tempered glass pane
  • Definition: 1280x800
  • 500 Nits, Sunlight-readable
  • Capacitive touch screen
  • Can be used with gloves

Connectivity

  • Wifi5 802.11 a/b/g/n/ac
  • Bluetooth 5
  • GSM: 850/900/1800/1900
  • TDD-LTE: B38/B39/B40/B41
  • FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B20/B28
  • 5G: N41/N78/N79
  • GPS L1+L5
  • NFC

Sensors

  • G-Sensor
  • Gyroscope
  • L-Sensor
  • E-Compass

Cameras

  • Front 5MP - Rear 13MP

Options

  • 1D/2D barcode scanner
  • Ethernet 10/100/1000
  • RFID UHF

Ports

  • 1x USB Type C
  • 1x Micro SD
  • 2x Nano SIM
  • 1x POGO accessories

Power Supply

  • 3.6V / 8000 mAh battery
  • Replaceable without tools
  • Supports fast charging

Dimensions and Weight

  • 235x146x13mm
  • 600g

Certificates

  • IP67
  • CE, WEEE, RoHS
  • Withstands drops up to 1.2 meters
  • Operating temperature: -20°C to +60°C
  • Storage temperature: -30°C to +70°C

Accessories

  • External battery charger
  • Desktop docking station
  • Vehicle docking station
  • Holding strap

Box Contents

  • Tablet
  • Battery
  • 5V / 3A power adaptor
  • USB C cable
  • User Manual
Read moreShow less
Specifications
Fieldbook N80G2
