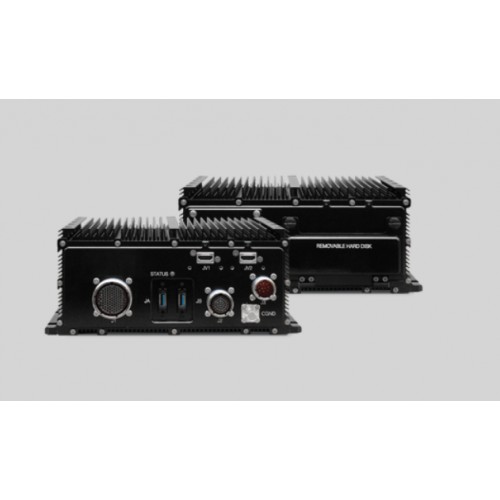

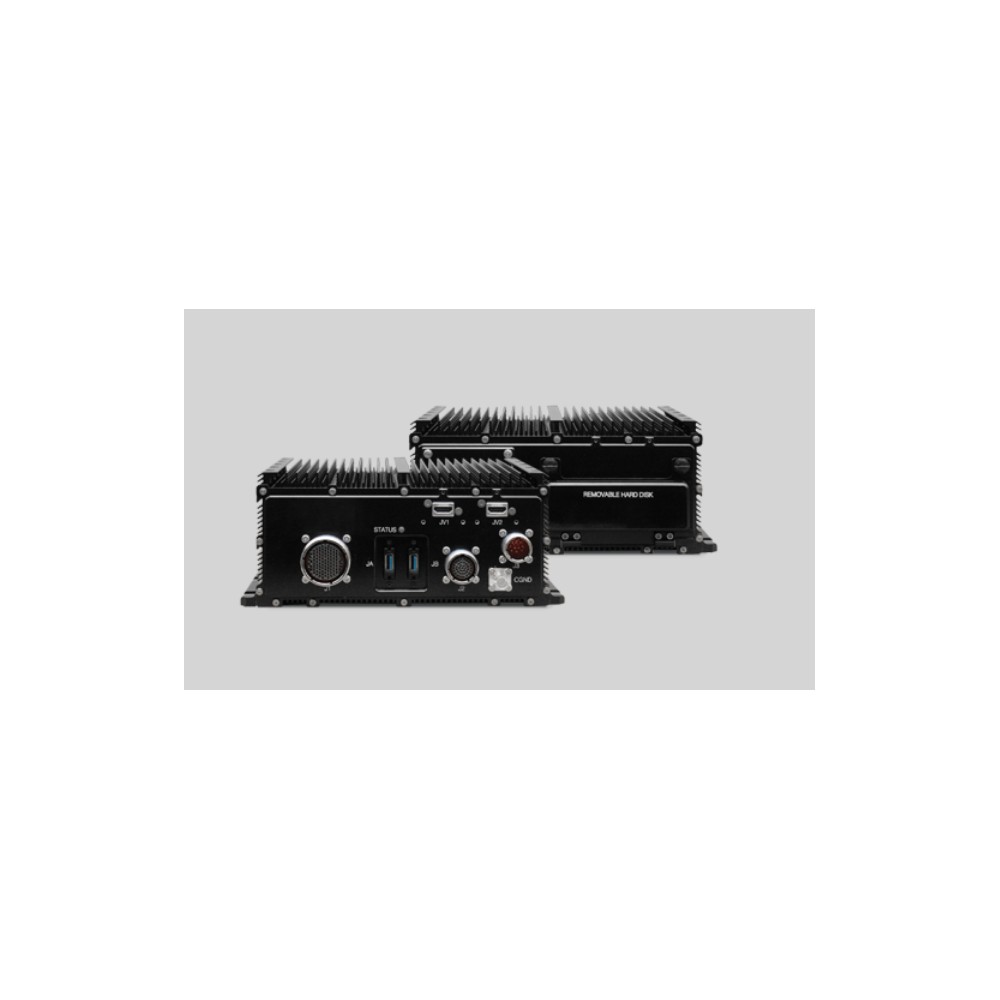

Key Features

• Rugged, fanless design
  No moving parts and no external airflow required, increasing reliability in harsh conditions.
• SWaP-C optimized architecture
  Compact and efficient for deployment in space- and power-constrained environments.
• High-performance processing
  Powered by 6th/7th Gen Intel® Core™ or Xeon® CPUs with multi-core and hyper-threading capability.
• Triple display support
  Supports up to three independent displays (2× HDMI + 1× VGA) for multi-screen operations.
• Removable secure storage
  • 1× hot-swappable 2.5” SATA SSD (with secure erase)
  • 1× front-accessible CFast card
    Enables secure data handling and quick data extraction.
• Extensive connectivity
  Multiple Ethernet, USB, serial, and audio interfaces for integration with sensors and subsystems.
• Expandable architecture
  MiniPCIe slot for additional interfaces (e.g., avionics protocols like MIL-STD-1553).
• Military & aerospace compliance
  Designed to meet MIL-STD-810G and RTCA/DO-160G standards for environmental resilience.

Key Specifications

Processing & Memory

• CPU:
  • Intel® Core™ i7-6822EQ (6th Gen)
  • Intel® Xeon® E3-1505M v6 (7th Gen)
• Cores/Threads: 4 cores / 8 threads
• Memory: Up to 32GB DDR4 (dual-channel, ECC optional)

Graphics & Display

• GPU: Intel® Gen 9 integrated graphics
• Outputs:
  • 2× HDMI
  • 1× VGA
• Supports 3 simultaneous displays

Storage

• 1× Removable 2.5” SATA SSD (hot-swappable, secure erase)
• 1× Removable CFast card slot

I/O & Connectivity

• Ethernet: 4× Gigabit LAN
• USB:
  • 2× USB 3.0
  • 4× USB 2.0
• Serial: 4× RS-232 / RS-422 / RS-485
• Audio: Line-in / Line-out
• PS/2: Keyboard & mouse
• Expansion: 1× MiniPCIe slot

Power

• Input: 28V nominal (MIL-STD-704F compliant)
• Consumption: ~80W
• Built-in protections:
  • Over-voltage
  • Over-current
  • Transient protection
• Power hold-up: up to 50 ms

Mechanical

• Dimensions: 256 × 116 × 203 mm
• Weight: ~5.3 kg
• Cooling: Fanless
• Connectors: MIL-DTL-38999 circular connectors

Environmental

• Operating temperature: -20°C to +55°C
• Storage: -40°C to +85°C
• Altitude: up to 25,000 ft
• Humidity: up to 95%

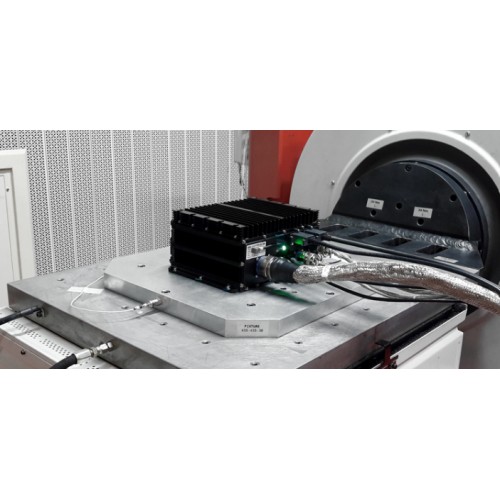

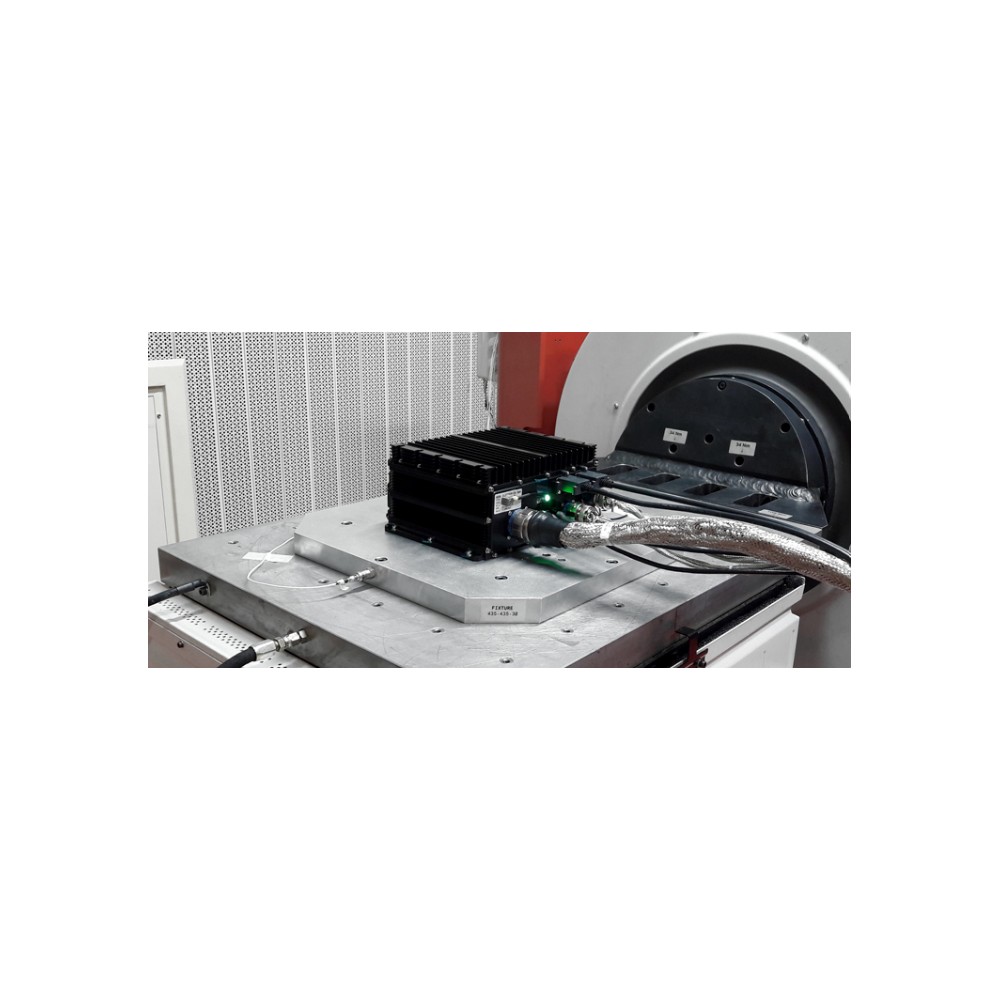

• Shock: 6g (operational), 20g crash safety
• Vibration: up to 1.5g
• Compliance: MIL-STD-810G, RTCA/DO-160G
