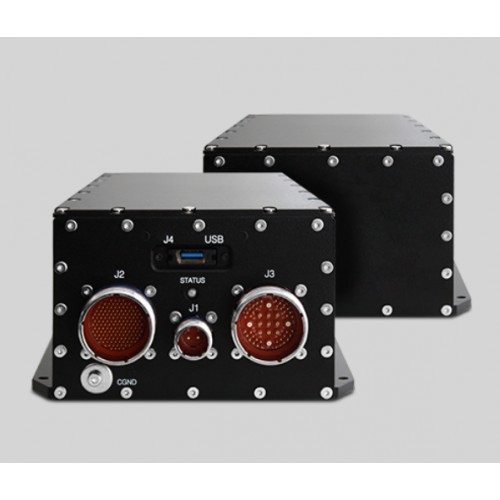

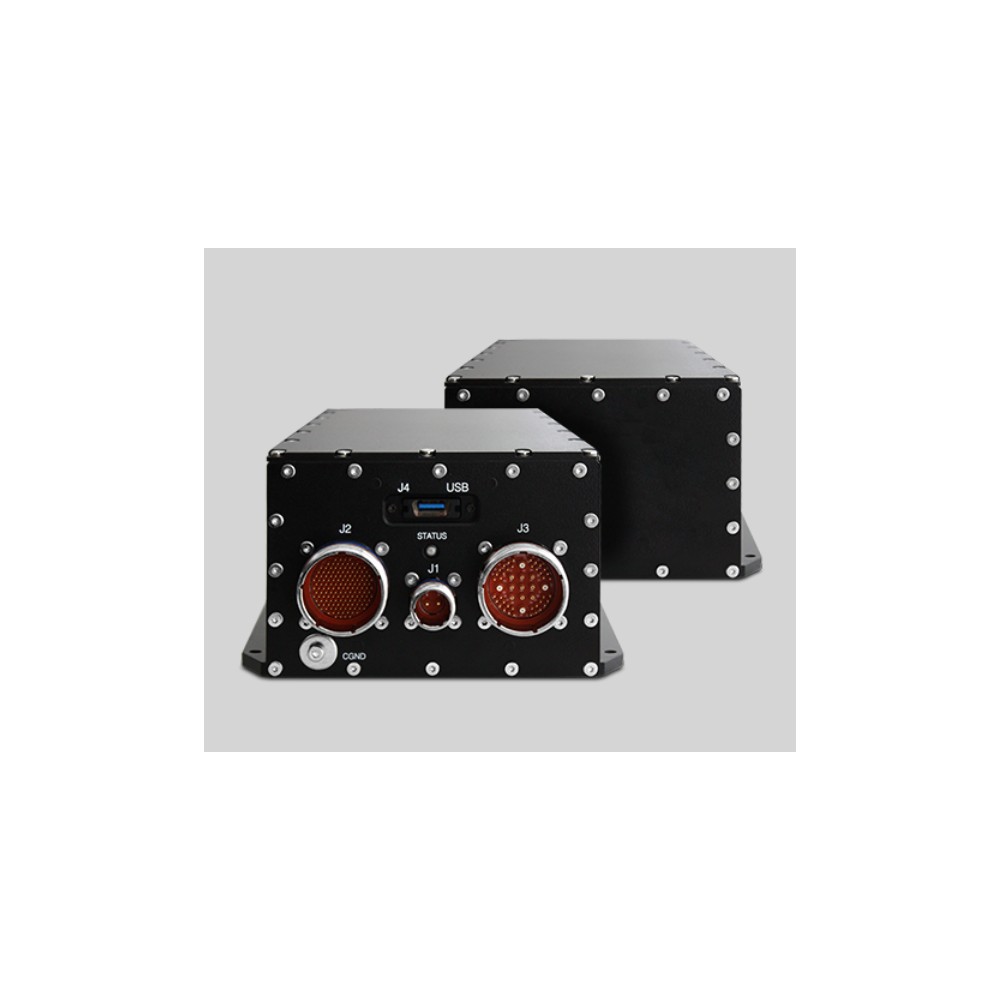

MAG2A AVIO

Key Features

• Intel Xeon processor with NVIDIA Quadro GPU for high-performance graphics and GPGPU processing
• 3G-SDI video capture and output with real-time processing and recording capabilities
• Integrated avionics interfaces including MIL-STD-1553 and ARINC 429
• Extensive I/O support including LAN, USB, serial, and configurable digital I/O
• Rugged conduction-cooled, fanless design for reliable operation in harsh environments
• Secure onboard storage with hardware secure erase capability

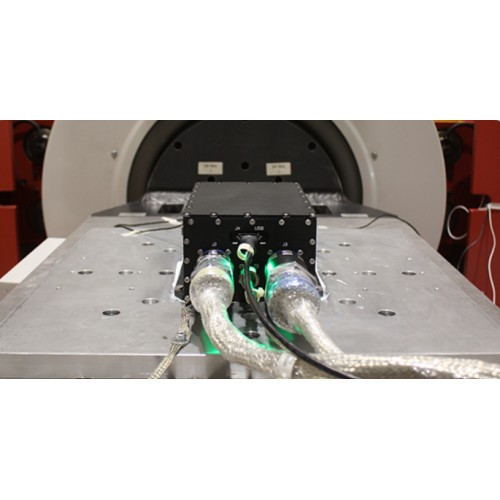

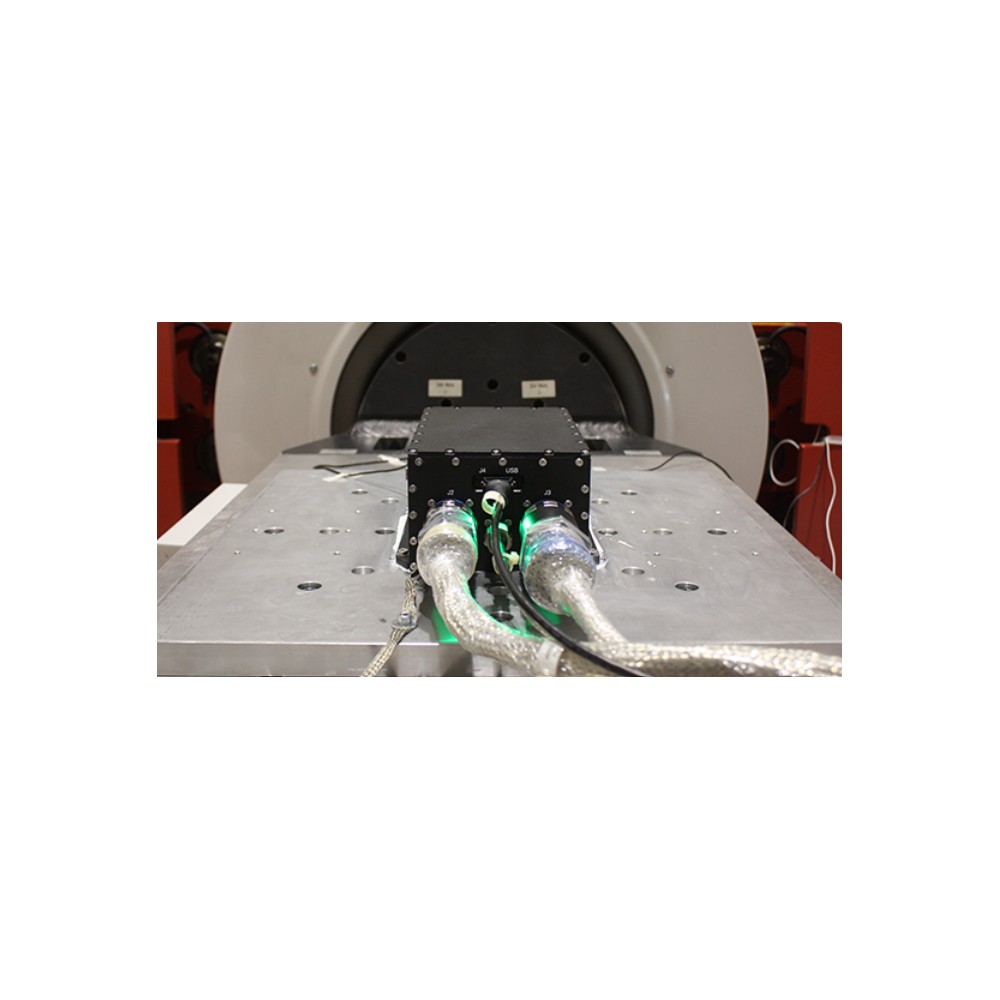

• Qualified to MIL-STD and RTCA/DO-160G standards for mission-critical reliability

Key Specifications

Processing & Graphics

• Intel Xeon E3-1505M v6 (quad-core)
• NVIDIA Quadro P2000 GPU (Pascal architecture)
• 16GB DDR4 ECC RAM

Video & I/O

• 2× 3G-SDI inputs, 2× 3G-SDI outputs
• 2× VGA outputs + 1× DVI output
• 3× Gigabit LAN
• USB 2.0 / 3.0, serial ports (RS232/422/485)
• Avionics: dual-redundant MIL-STD-1553, ARINC 429 (TX/RX channels)

Power & Environmental

• 28VDC input (MIL-STD-704 compliant)
• Operating temperature: approx. -45°C to +70°C
• IP65 protection
• Fanless conduction-cooled design
