Brand:

Logic Instruments

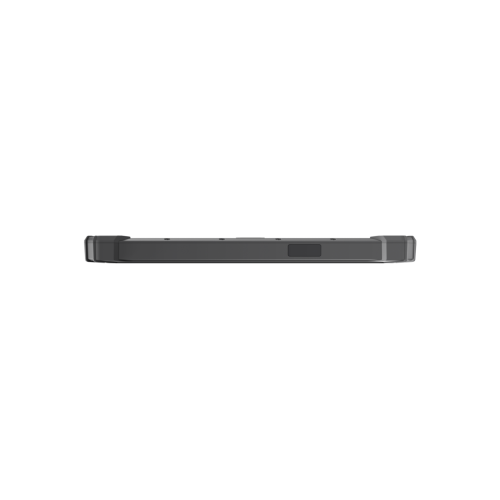

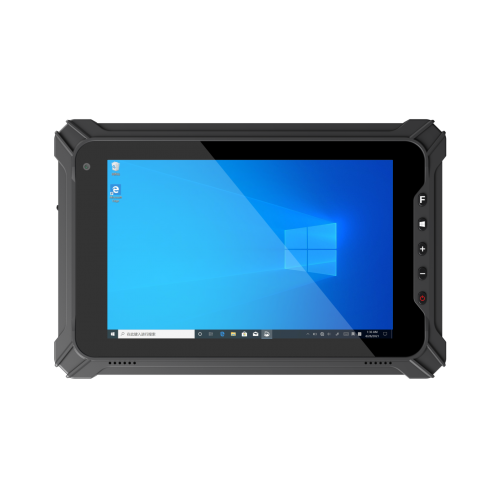

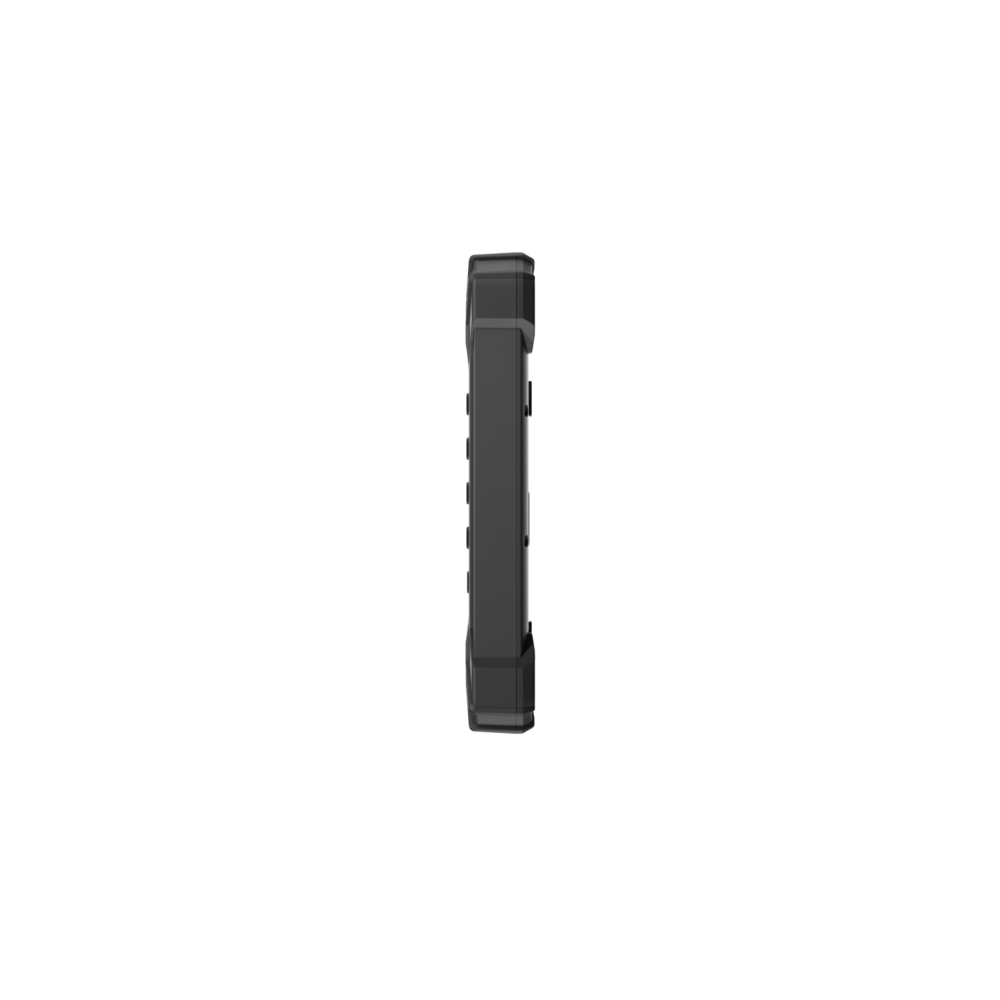

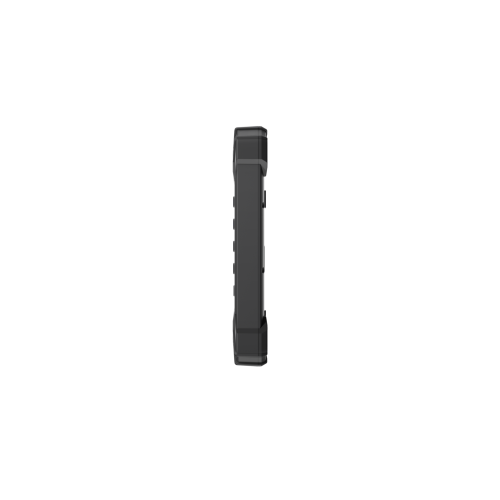

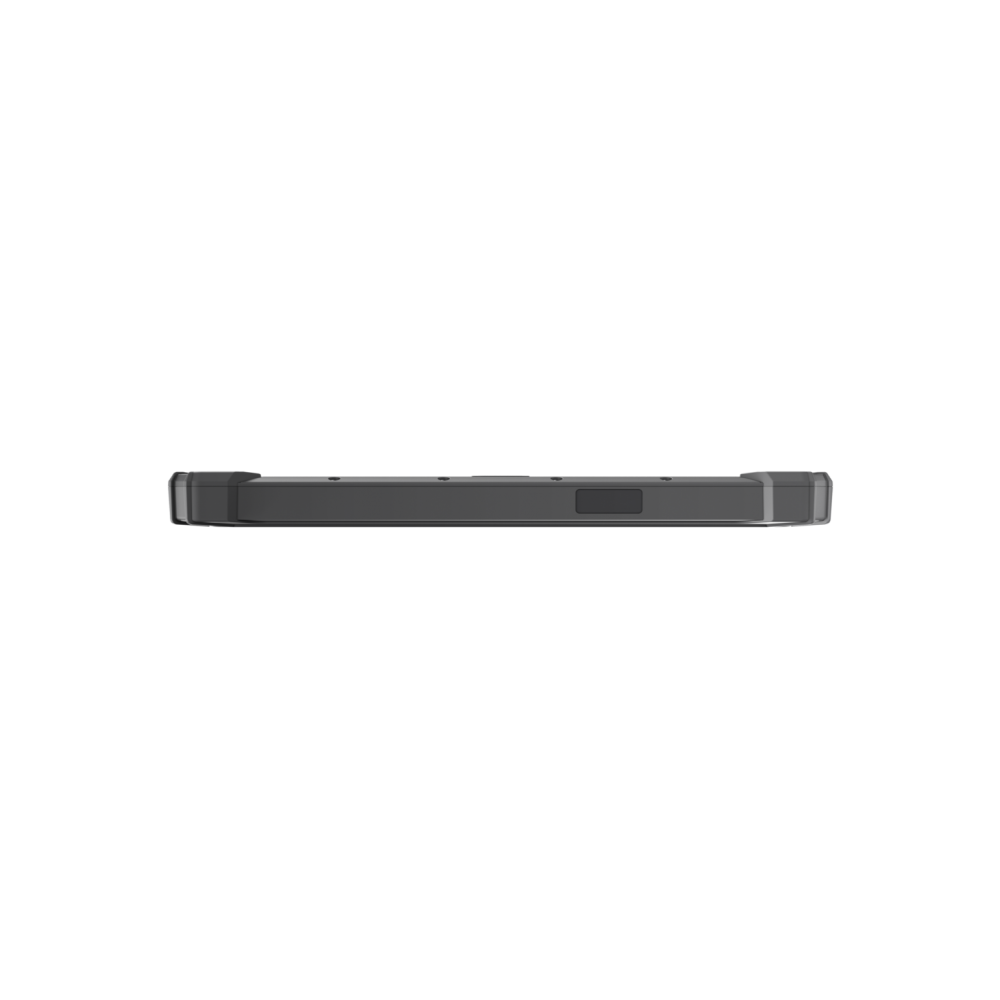

Fieldbook P80

MIL-STD-810H certified, the Fieldbook P80 is a real adventurer. It can withstand shocks, vibrations and drops of up to 1.2m, making it a reliable tool in demanding working conditions. With its IP65 protection rating, it is also protected from dust and jets of water.

Operating System

Windows 11 IOT Entreprise SAC
Windows 10 IOT Entreprise SAC

Processor & Memory

Intel® Celeron® N5100
Intel® UHD Graphics
8GB RAM
128GG eMMC

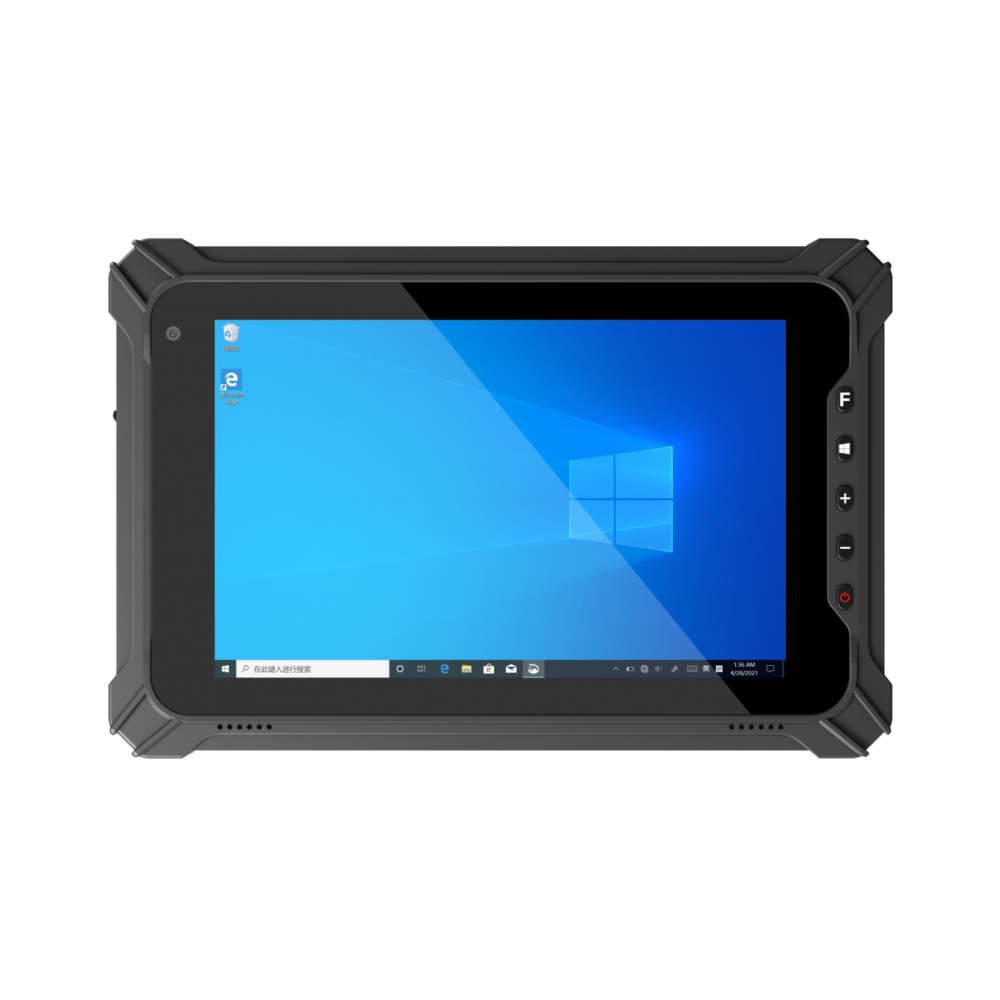

Screen

8” IPS protected by a tempered glass pane
1280×800
Brightness of 700 Nits
Anti-reflective treatment
Capacitive touch screen
Digitizer with active pen

Connectivity

Wifi 802.11 a/b/g/n/ac
Bluetooth 5
LTE FDD: B1/B3/B7/B8/B20
LTE-TDD: B40
WCDMA: B1/B5/B8
GPS
NFC

Cameras

5MP front – 8MP rear

Barcode Scanner

Optional 1D/2D barcode scanner

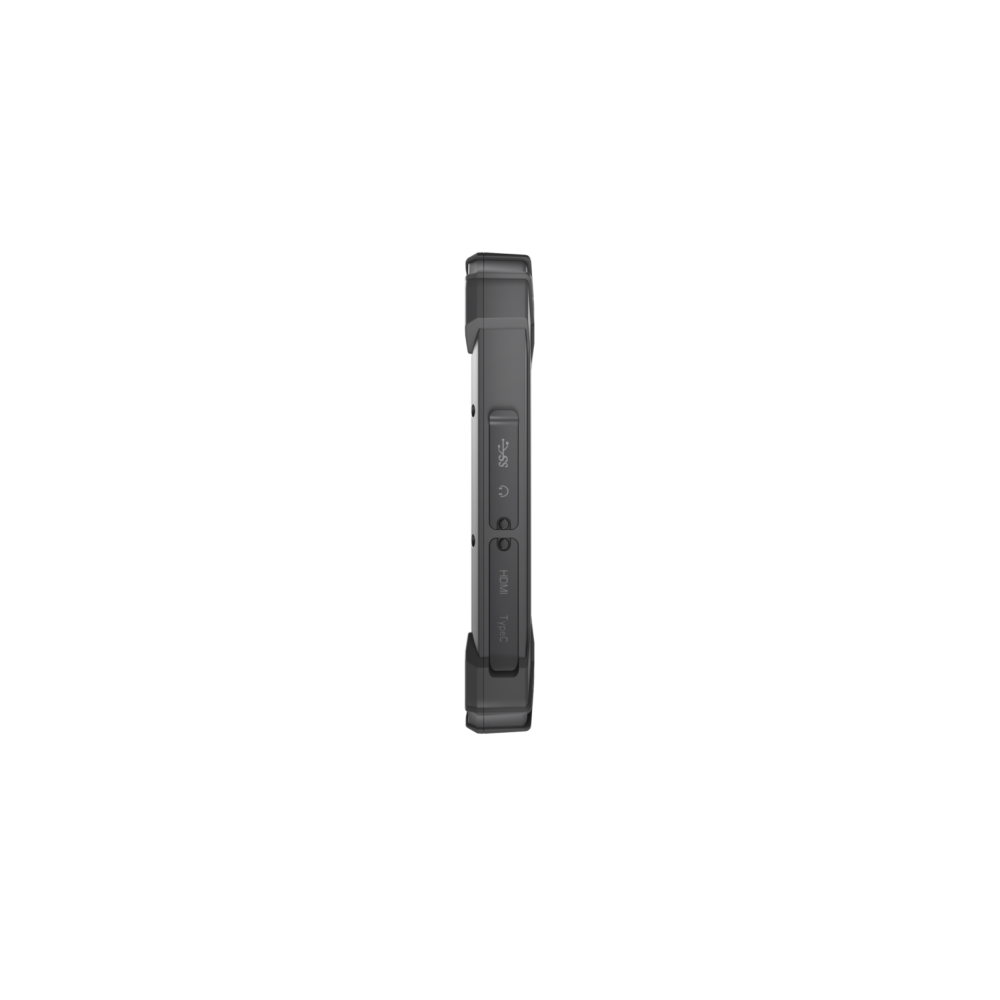

Ports

1X USB Type C 3.1
1X USB Type A
1X Micro SD + 2X Nano SIM
1X Mini HDMI 2.0A

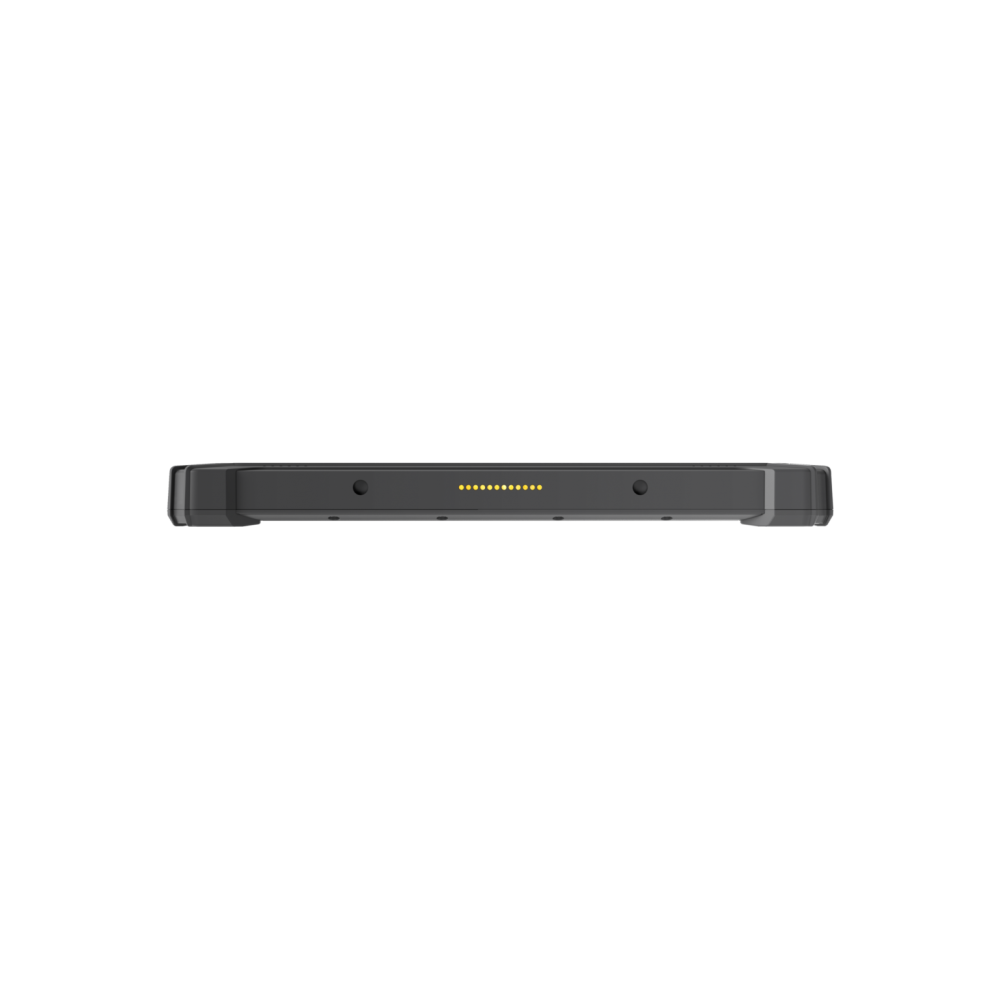

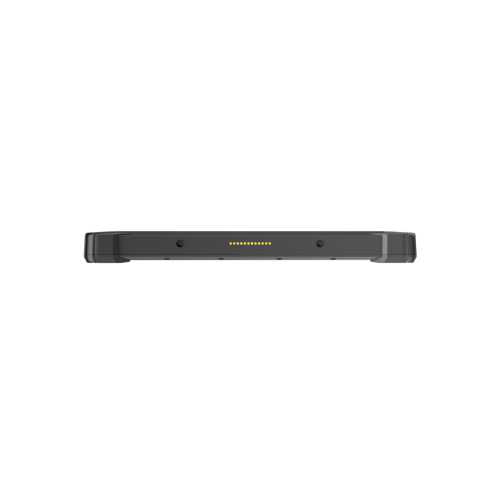

1X POGO for docking station
1X port audio 3.5mm

Buttons

1X power button
2X volume buttons
1X Home button
1X barcode scan button

Power Supply

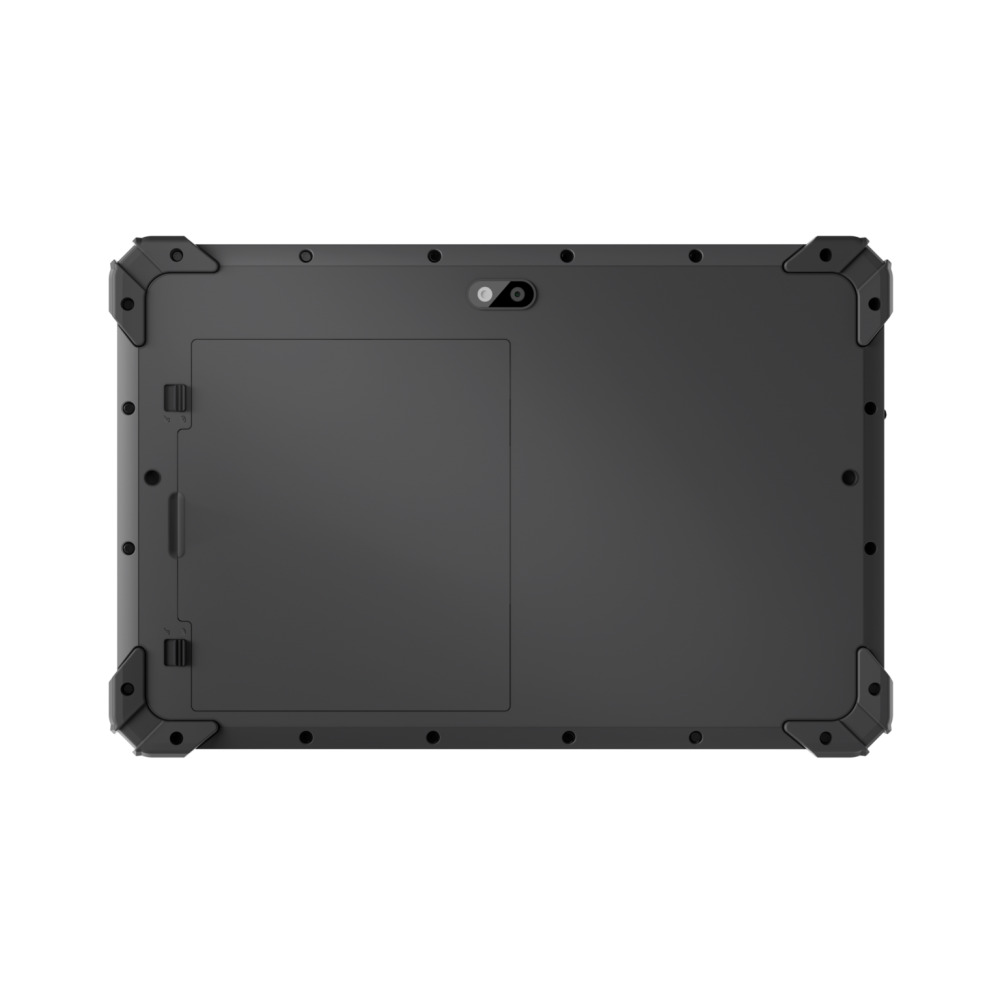

7.6 V / 5000 mAh battery
Replaceable without tools
Adapter AC100V ~ 240V, 50Hz/60Hz – 19V/3.42A

Dimensions and Weight

236.7 x 155.7 x 20mm
910g (32.1 oz)

Certificates

IP65, MIL-STD-810H
CE, WEEE, RoHS
Withstands drops from 1.2m
Operating temperature: -20°C to +60°C
Storage temperature: -30°C to +70°C
Humidity: 95% non-condensing

Accessories

Carrying strap
Docking station with battery charger
Vehicle station
4 slot battery charger
Vehicle power supply

Box Contents

Fieldbook P80 tablet,
Battery,
AC-DC power supply,
Strap,
USB type C cable,
User guide
