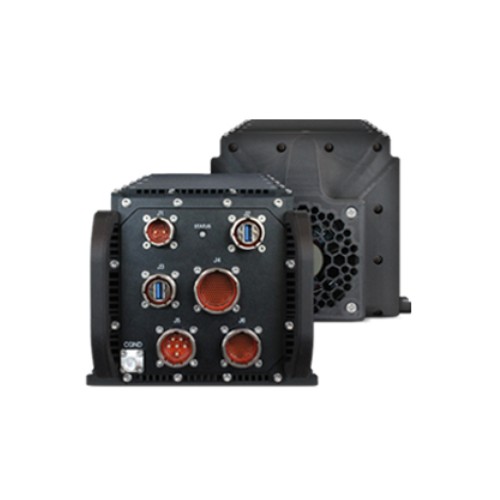

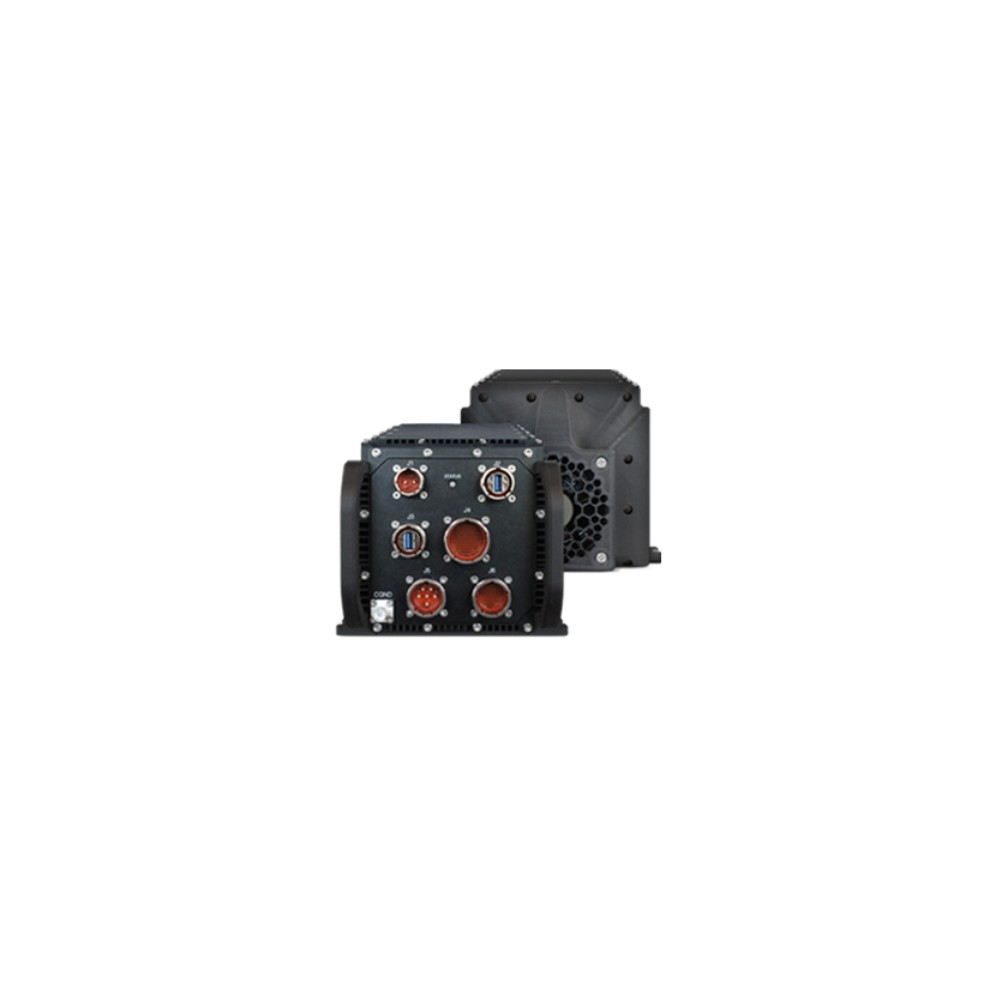

The MAG4C PRO is a high-performance rugged VPX-based mission computer designed for advanced video capture, GPGPU computing, and AI-driven applications in harsh environments. Engineered for mission-critical operations, it integrates powerful CPU and GPU processing with extensive multifunction I/O capabilities, enabling real-time video processing, deep learning, and data-intensive workloads.

Built with a robust conduction-cooled architecture and compliant with stringent military and aerospace standards, the MAG4C PRO delivers reliable performance across extreme conditions, making it ideal for defence, airborne, and ground-based platforms

Read moreShow less
Request for Quote
Add to wishlist
Share
Description

Key Features

  • High-performance computing platform with Intel Xeon processor and NVIDIA Ampere GPU for AI, deep learning, and GPGPU workloads
  • Advanced video capture capabilities with multiple 3G-SDI inputs/outputs and real-time H.264/H.265 encoding/decoding
  • Extensive multifunction I/O support, including ARINC429, MIL-STD-1553, Gigabit LAN, USB, serial, and discrete I/O
  • Rugged and compact design with conduction cooling and removable fan module for high thermal efficiency
  • Mission-ready reliability with compliance to MIL-STD, RTCA/DO-160G, and IP65 environmental protection standards
  • Secure and flexible storage options with onboard SSD and secure erase functionality

Key Specifications

Processing & Graphics

  • Intel Xeon processor (8-core)
  • NVIDIA RTX A2000 GPU (Ampere architecture)
  • Up to 32GB DDR4 ECC RAM

Video & I/O

  • Multiple 3G-SDI inputs/outputs
  • 4× Gigabit LAN
  • ARINC429 and MIL-STD-1553 support
  • USB, serial, audio, and discrete I/O

Power & Environmental

  • 28VDC input (MIL-STD-704 compliant)
  • Operating temperature: -40°C to +70°C
  • IP65 protection
  • Conduction-cooled rugged design
Read moreShow less
