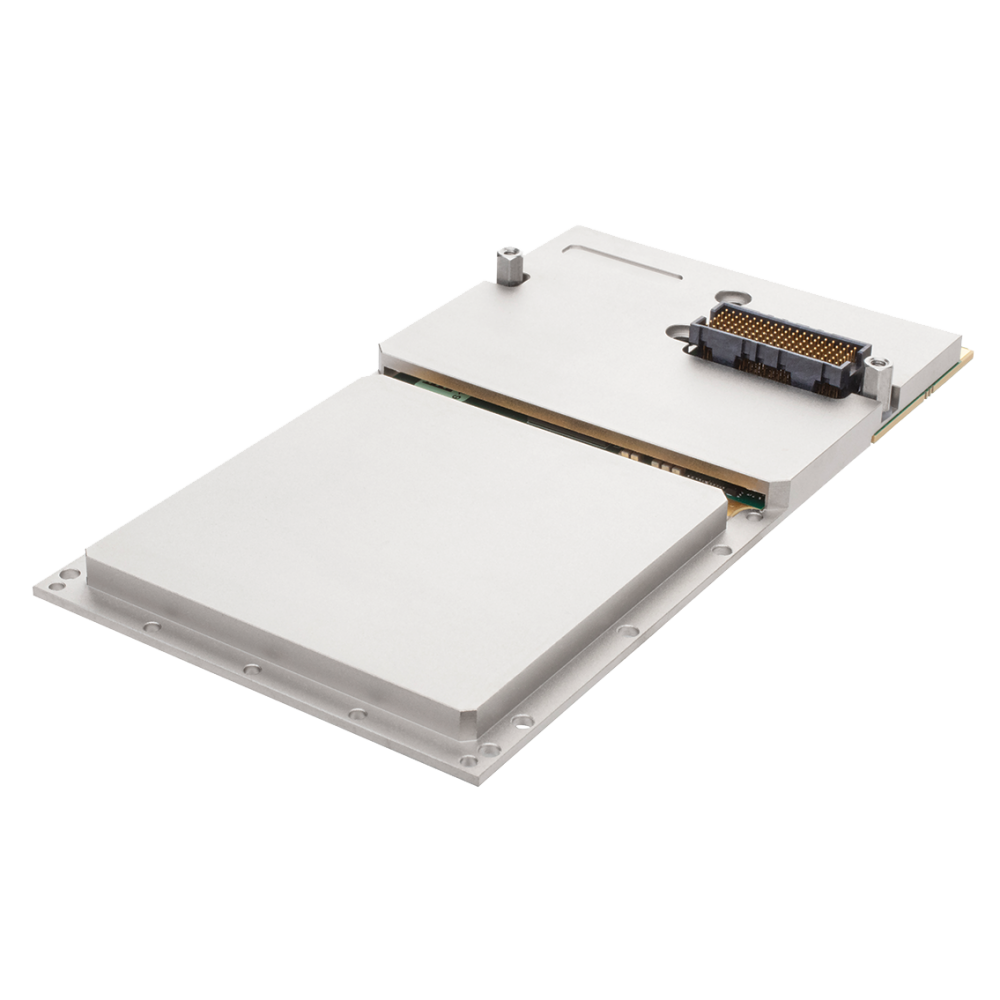

Condor NVA500xX

The NVIDIA RTX A500 GPU is a headless GPU that operates without a display output. Headless GPUs can be leveraged to perform parallel processing on large datasets, making them suitable for tasks like object detection, image recognition, and other computationally intensive operations. Headless GPUs can contribute to reducing latency by offloading specific computational tasks from the CPU to the GPU, enabling faster processing of data.

The Condor NVA500xX offers high-performance embedded computing (HPEC) capabilities such as low-latency GPGPU processing, real-time ray tracing, deep learning (DL), and AI inferencing. This versatile solution features support for PCI Express Gen 4 for increased data transfer speeds, incorporates dedicated H.265/H.264 encode and decode engines, and supports NVIDIA GPUDirect Remote Direct Memory Access (RDMA) for streamlined data transfer operations.

Specifcations

Interface: XMC 1.0 or XMC 2.0 8 Lane PCIe 4.0

Graphics Processor: NVIDIA RTX A500 GPU (Amphere Architecture) Supporting DirectX 12, OpenGL 4.5, and Vulkan 1.2

Graphics Memory: 4GB GDDR6 64bit Memory Interface 112GB/s Memory Bandwith

GPGPU Capabilities: 2048 CUDA Cores. 64 Tensor Cores. 16 RT Cores. Up to 2.7 TFLOPS FP32 Single Floating Point Performance. Supports CUDA, CUDA-X, OpenCL and Shader Model 5.1 H.265 (HEVC)/ H.264 (MPEG4/AVC) Hardware Encode/ Decode. NVIDIA GPUDirect RDMA, NVENC, NVDEC

Humidity (MIL-STD-810): 95% without condensation

Software & Platform Support: Windows or Linux on x86 VPX & PCIe

Operating Temperature (MIL-STD-810): -40°C to 70°C (Rugged Air Cooled), -40°C to 85°C (Rugged Conduction Cooled)

Power Consumption: 20 -35W

Vibration: 0.1 g²/Hz

Shock (MIL-STD-810): 40g
