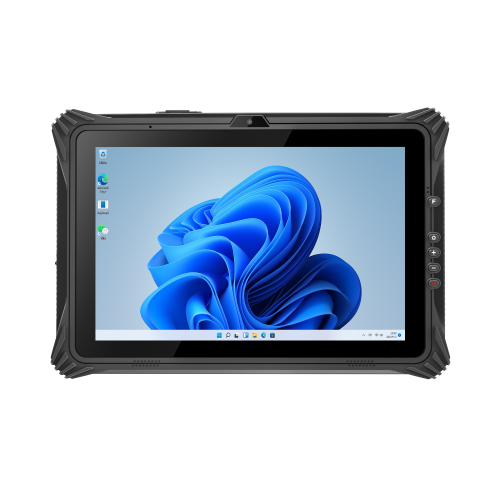

Fieldbook P122G2

Operating System

• OS: Windows 11 Pro

Processor, RAM & OS

• Processor: Intel Core i7-1225U
• Graphic Processor: GPU Intel Iris Xe
• RAM: 16GB
• Storage: 128GB (other options available)
• Fingerprint reader

Screen

• 12.2" IPS protected by a tempered glass pane
• 1920 x 1200
• 650 Nits brightness
• 10-point capacitive touchscreen
• Digitizer with active pen

Connectivity

• Wifi6 802.11 a/b/g/n/ac/ax
• Bluetooth 5.1
• LTE FDD: B1/B3/B7/B8/B20
• LTE-BDD: B40
• WCDMA: B1/B5/B8
• GPS
• NFC

Cameras

• Front 2MP - Rear 8MP

Options (Replace RJ45 Ports)

• N3680 1D/2D barcode scanner
• RS232 on 9-pin SubD port
• USB 2.0 on Type A port

Ports

• 1x USB Type C 3.0
• 1x USB Type A 3.0
• 1x Micro SD + 1x SIM
• 1x RJ45 Gigabit Ethernet
• 1x Mini HDMI 2.1A
• 1x POGO for docking station
• 1x audio port 3.5mm
• 1x DC in

Buttons

• 1x Power Button
• 2x Volume Buttons
• 1x Home Button
• 1x Barcode Scan Button

Power Supply

• 7.4V / 6300mAh battery, replaceable without tools
• 7.4V / 700mAh backup battery
• Adapter AC100V~240V, 50 Hz/60 Hz 19V/3.42A

Dimensions & Weight

• 399.3 x 230.3 x 26mm
• 1.6kg

Certificates

• IP65, MIL-STD-810G
• CE, RoHS, UN3803
• Withstands drops from 1.2m
• Operating temperature: -20°C to +60°C
• Storage temperature: -30°C to +70°C
• Humidity: 95% non-condensing

Accessories

• Carrying Strap

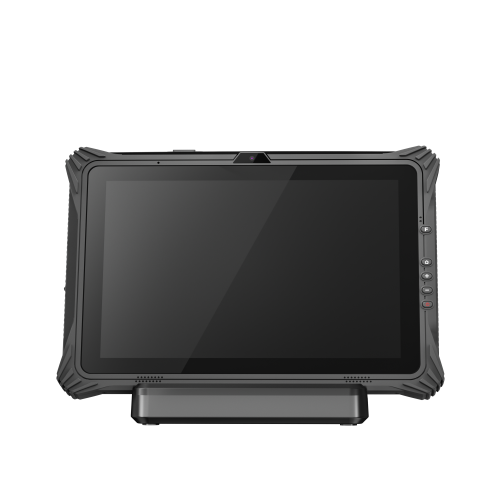

• Docking station with battery charger
• Vehicle Station
• 4 slot battery charger
• Vehicle power supply

Included in the box

• Fieldbook P122G2 Tablet
• Digitize stylus and battery
• AC-DC power supply
• Rear strap
• Carrying handle
• Shoulder strap
• USB type C cable
• User guide
