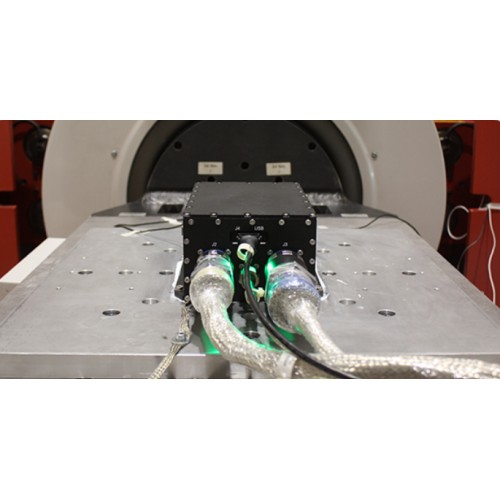

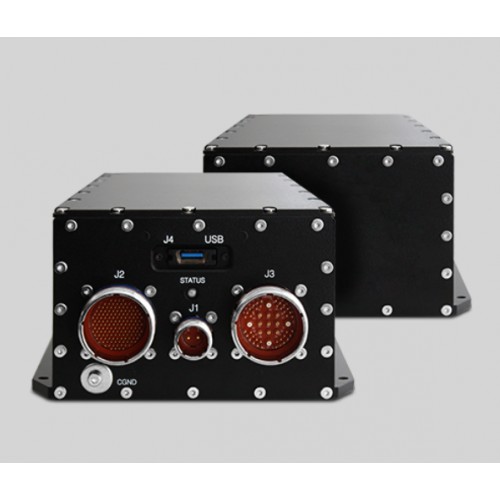

MAG2A IO

Key Features

• Intel Xeon processor with NVIDIA Quadro GPU for AI, deep learning, and GPGPU applications
• 3G-SDI video capture and output with real-time H.264/H.265 encoding/decoding
• Extensive and configurable I/O including LAN, USB, serial, CAN bus, ARINC429, and MIL-STD-1553
• Rugged conduction-cooled, fanless design for reliable operation in extreme environments
• Secure and flexible storage with hardware secure erase capability
• Qualified to MIL-STD and RTCA/DO-160G standards for mission-critical reliability

Key Specifications

Processing & Graphics

• Intel Xeon E3-1505M v6 (quad-core)
• NVIDIA Quadro P2000 GPU (Pascal architecture)
• 16GB DDR4 ECC RAM

Video & I/O

• 2× 3G-SDI inputs, 2× 3G-SDI outputs
• VGA and DVI video outputs
• 3× Gigabit LAN
• USB 2.0 / 3.0, serial ports (RS232/422/485)
• Configurable I/O (ARINC429, MIL-STD-1553, CAN bus, analog video)

Power & Environmental

• 28VDC input (MIL-STD-704 compliant)
• Operating temperature: approx. -40°C to +70°C
• IP65 protection
• Fanless conduction-cooled design
