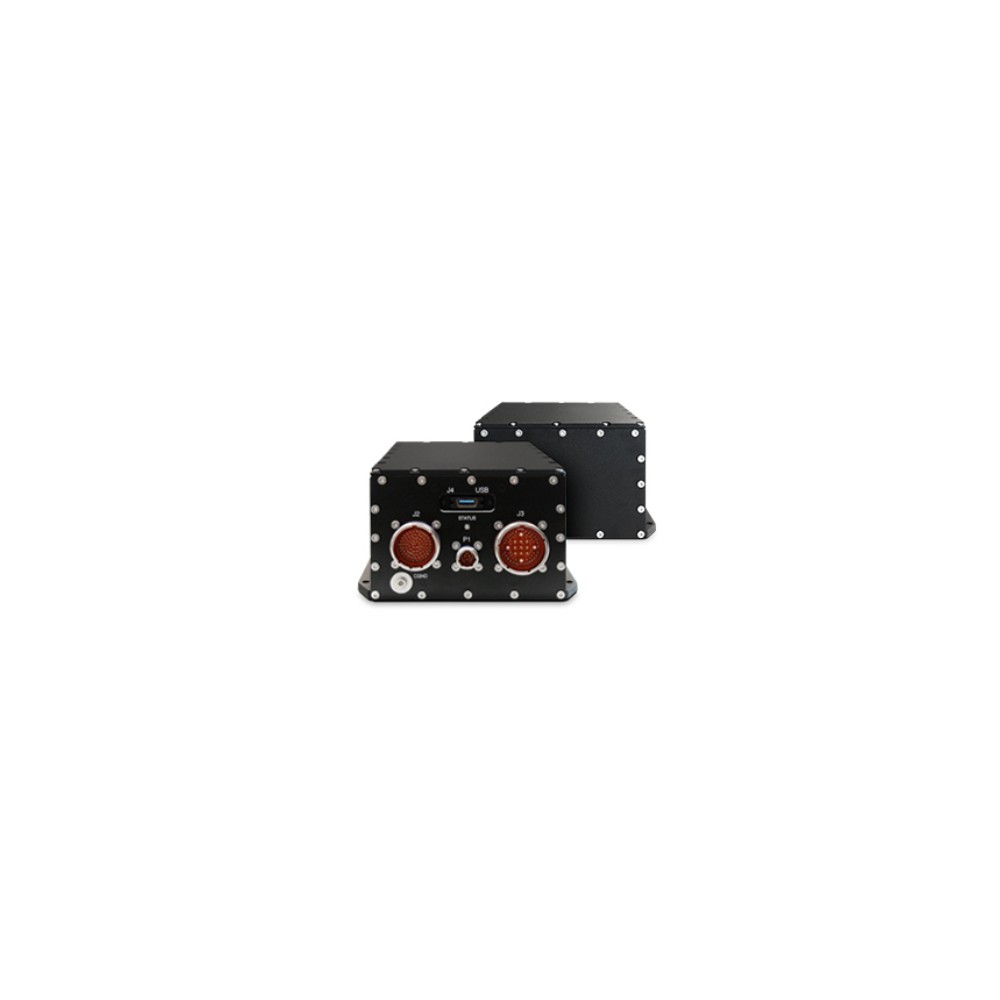

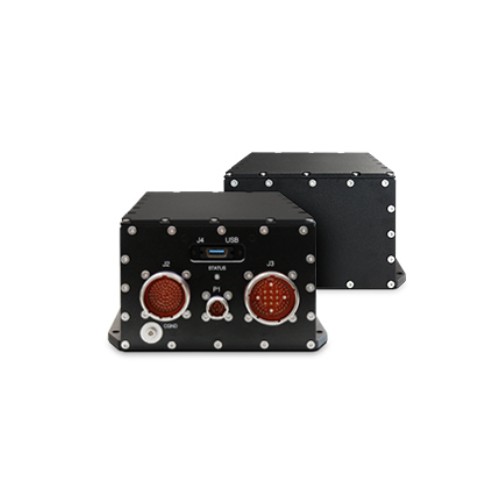

MAG2C EVO

Key Features

• High-performance Intel Xeon processor with NVIDIA Quadro GPU for GPGPU and AI applications
• 3G-SDI video capture and output with real-time H.264/H.265 encoding/decoding
• Extensive I/O support including LAN, USB, serial, audio, and discrete I/O
• Forced air-cooled design for efficient thermal management and optimal performance

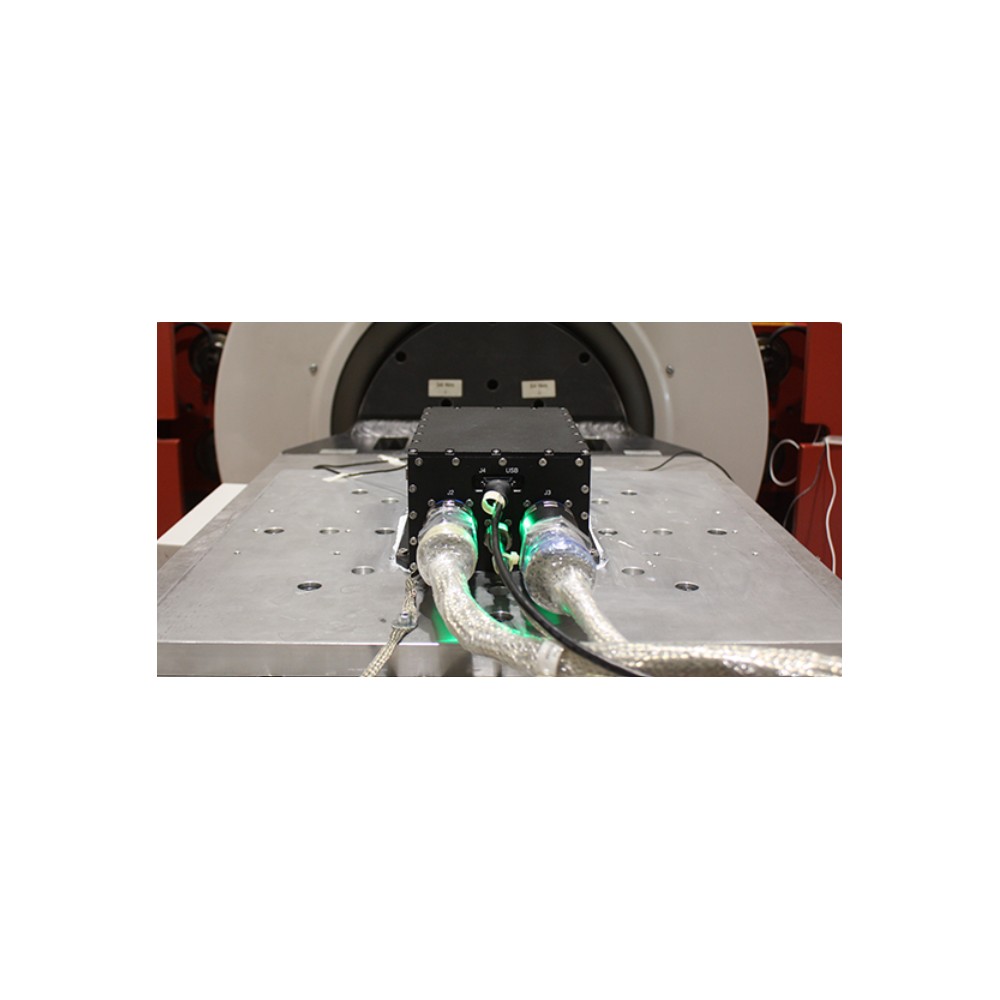

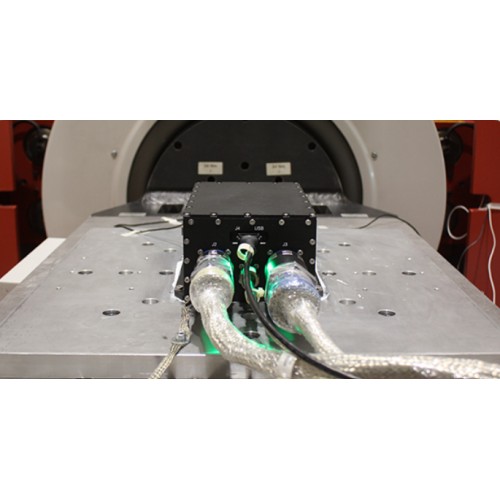

• Qualified to MIL-STD and RTCA/DO-160G standards for mission-critical reliability
• Secure and flexible onboard storage with hardware erase/destroy capability

Key Specifications

Processing & Graphics

• Intel Xeon E3-1505M v6 (quad-core)
• NVIDIA Quadro P2000 GPU (Pascal architecture)
• 16GB DDR4 ECC RAM

Video & I/O

• 2× 3G-SDI inputs, 2× 3G-SDI outputs
• VGA, RGB, and DVI outputs
• 3× Gigabit LAN
• USB 2.0 / 3.0, serial ports (RS232/422/485), audio and discrete I/O

Power & Environmental

• 28VDC input (MIL-STD-704 compliant)
• Operating temperature: -40°C to +70°C
• IP65 protection
• Forced air cooling with removable fan module
