WaveLINK

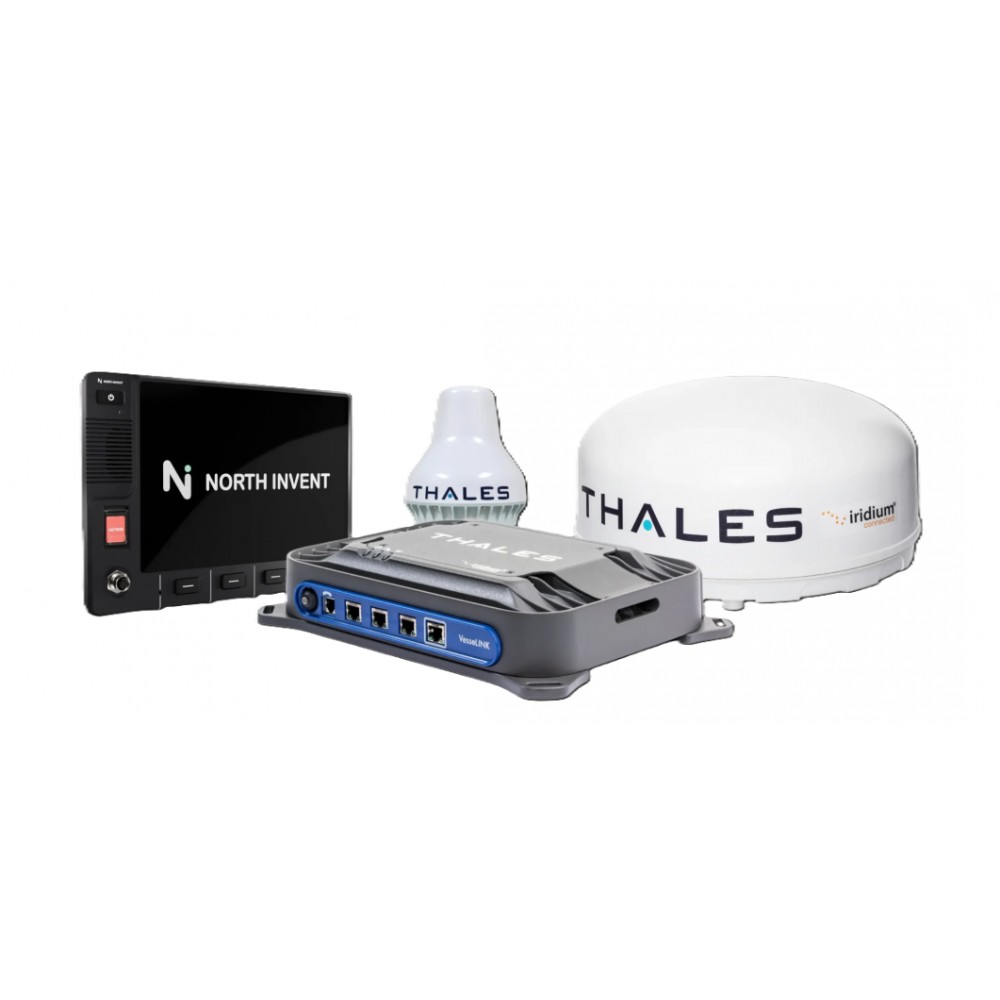

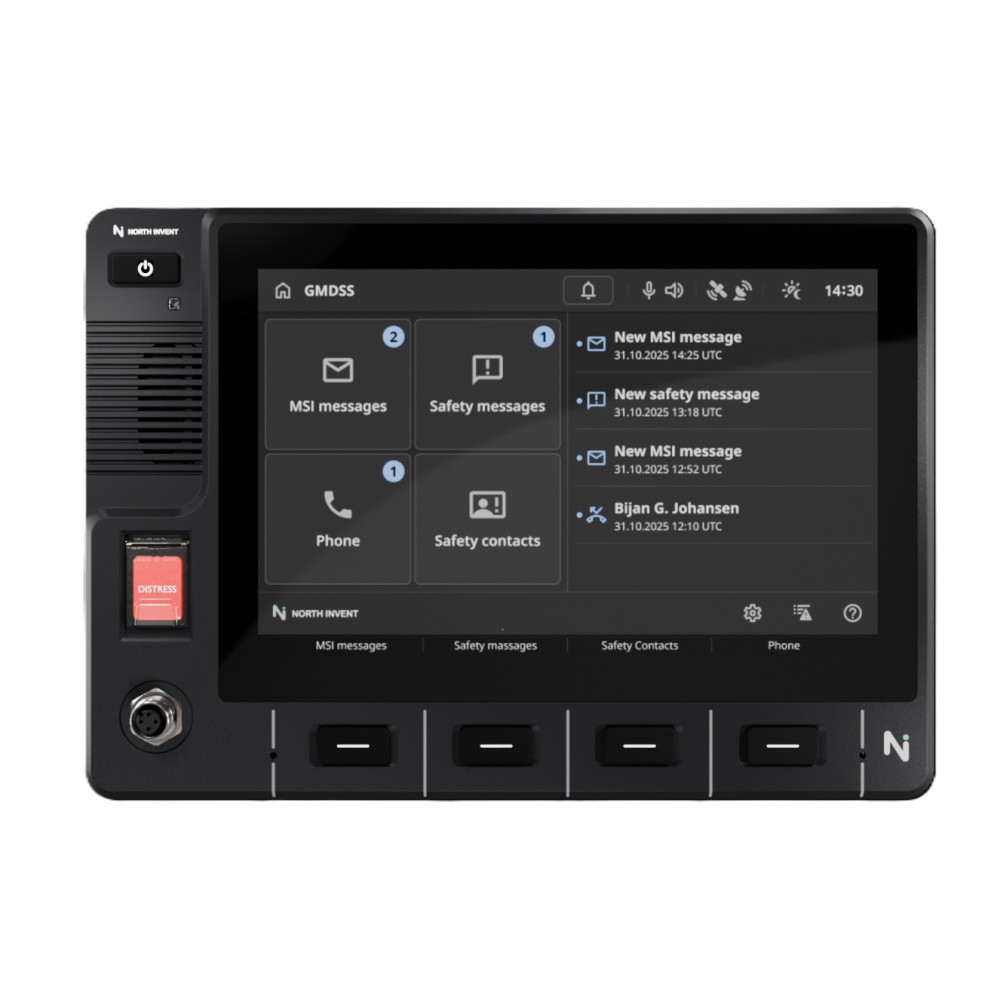

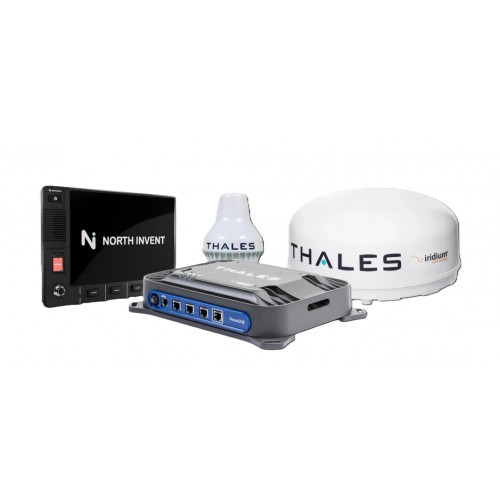

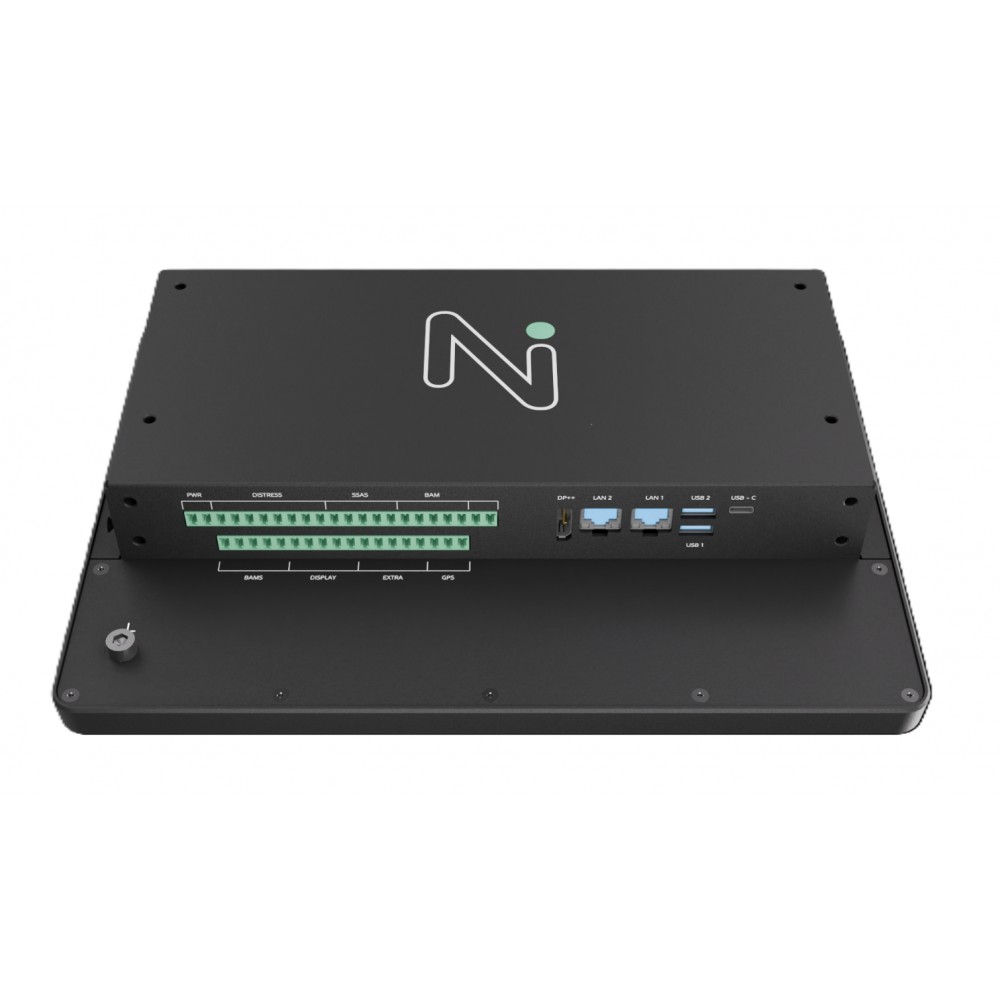

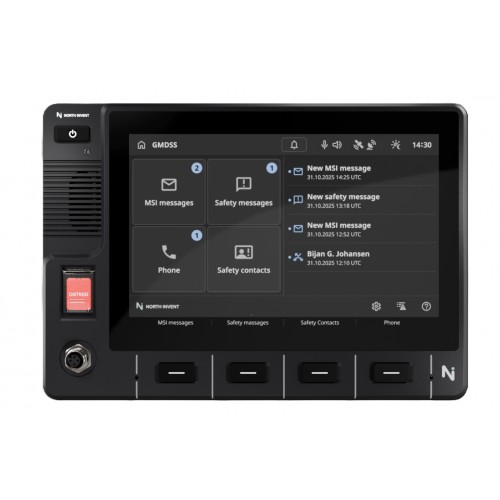

WaveLINK is a next-generation GMDSS communication system designed to bring maritime safety and connectivity together on a single integrated platform. Powered by the Iridium Certus network and featuring a 10.1″ touchscreen computer, it enables GMDSS, SSAS and LRIT functionality while providing a familiar OpenBridge interface for modern bridge operations

Key Features

Integrated GMDSS solution combining essential maritime safety and communication functions
Global maritime connectivity through the Iridium Certus network
Seamless VesseLINK upgrade for existing Thales VesseLINK installations
OpenBridge interface providing a familiar and intuitive operator experience
Multi-purpose platform supporting both safety operations and everyday vessel applications
Scalable architecture allowing future digital services and third-party applications
Bridge-ready design engineered for reliable operation in demanding maritime environments
Simplified installation without requiring additional satellite hardware for compatible VesseLINK systems

Key Specifications

Display Size: 10.1″
Resolution: 1,280 × 800
Brightness: 900 cd/m²
Processor: Intel Atom x6425E
Power Supply: 10–32 VDC
Power Consumption: Approx. 35 W
Operating Temperature: -20°C to +55°C
Protection: IP31
Dimensions: 300 × 210 × 45 mm
Weight: 2.5 kg
Standards: IEC 60945, IACS E10 & IEC 60529
