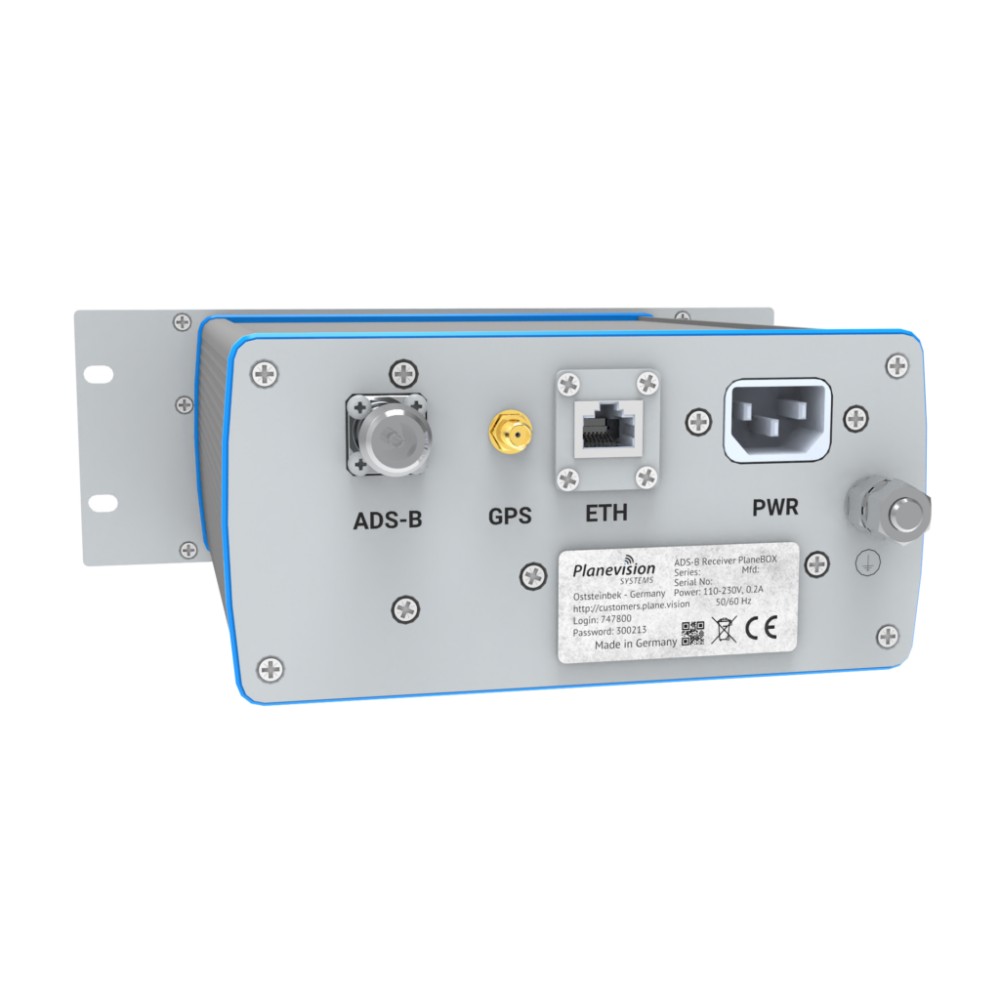

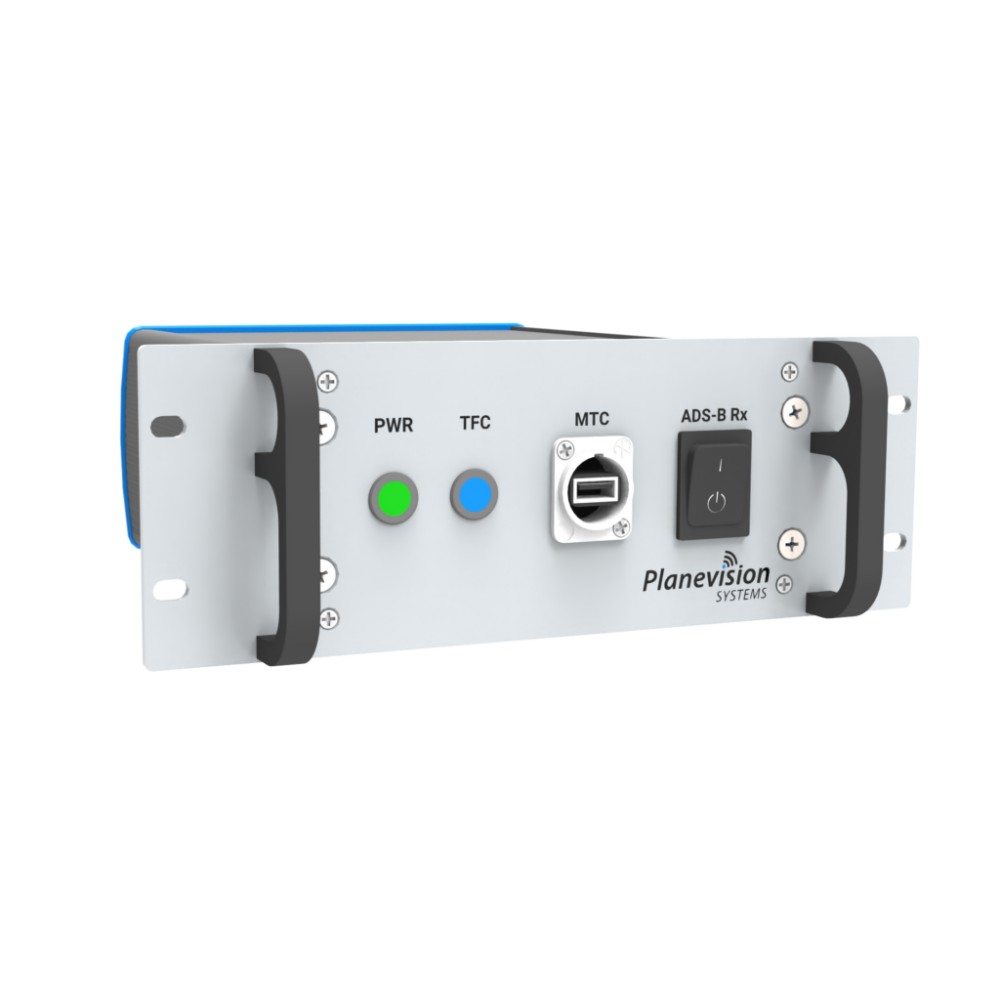

PlaneTRack B10

Key Features

• Industry-grade 1090 MHz ADS-B receiver, processor and decoder
• Compact 10-inch 2U rack-mount enclosure
• Wide-range power options supporting 9–72 VDC or 115–230 VAC
• Full Ethernet connectivity for network-based data communication
• Multiple data output formats for flexible system integration
• Open software architecture for customised applications and integration
• Plug-and-play system kit with ADS-B and GPS antennas and antenna line surge protection
• Optional SNMP support for device monitoring and management
• Extended-temperature configuration available for demanding operating environments
• Optional radar display software for visualisation applications

Key Specifications

• Receiver: ADS-B
• Receiver Frequency: 1090 MHz
• Rack Width: 10-inch
• Rack Height: 2U
• RF Input: N(f), 50 Ω, maximum 0 dBm
• Receiver Sensitivity: > -93 dBm
• Dynamic Range: 75 dB
• Data Processor: 32-bit Cortex-A8, 1 GHz; 512 MB RAM; 1 GB Flash
• Operating System: Linux/Debian LTS
• Data Decoder: ADS-B, Mode-S and ACAS; compliant with ICAO Annex 10 Vol IV, DO-260/A/B, DOC 9871, ED-129 and ED-102/A
• Network Interface: Ethernet RJ45 with surge protection
• Data Protocols: UDP, TCP, HTTP, NTP
• Data Formats: Raw, JSON, ASTERIX CAT021/023/247, CSV, NMEA/IEC, REST API
• Power: 115/230 VAC or 12 VDC; optional 24 VDC or 48 VDC
• Operating Temperature: -10°C to +60°C for indoor components; -30°C to +70°C with extended-temperature option
• Protection: IP30 indoor components; IP66 outdoor components
• Cooling: Natural convection
• Weight: 5.5 kg including accessories
• Optional Features: External PSU, active ADS-B antenna, SNMP client and extended
