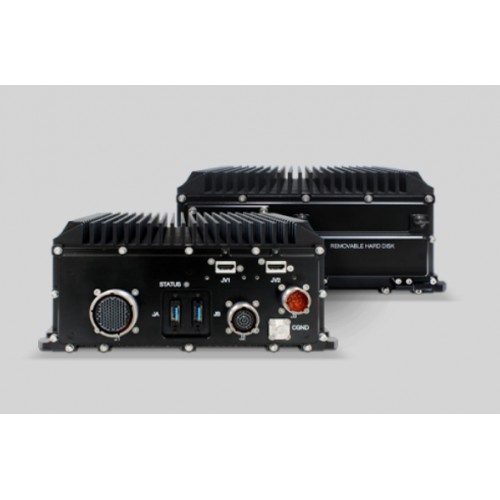

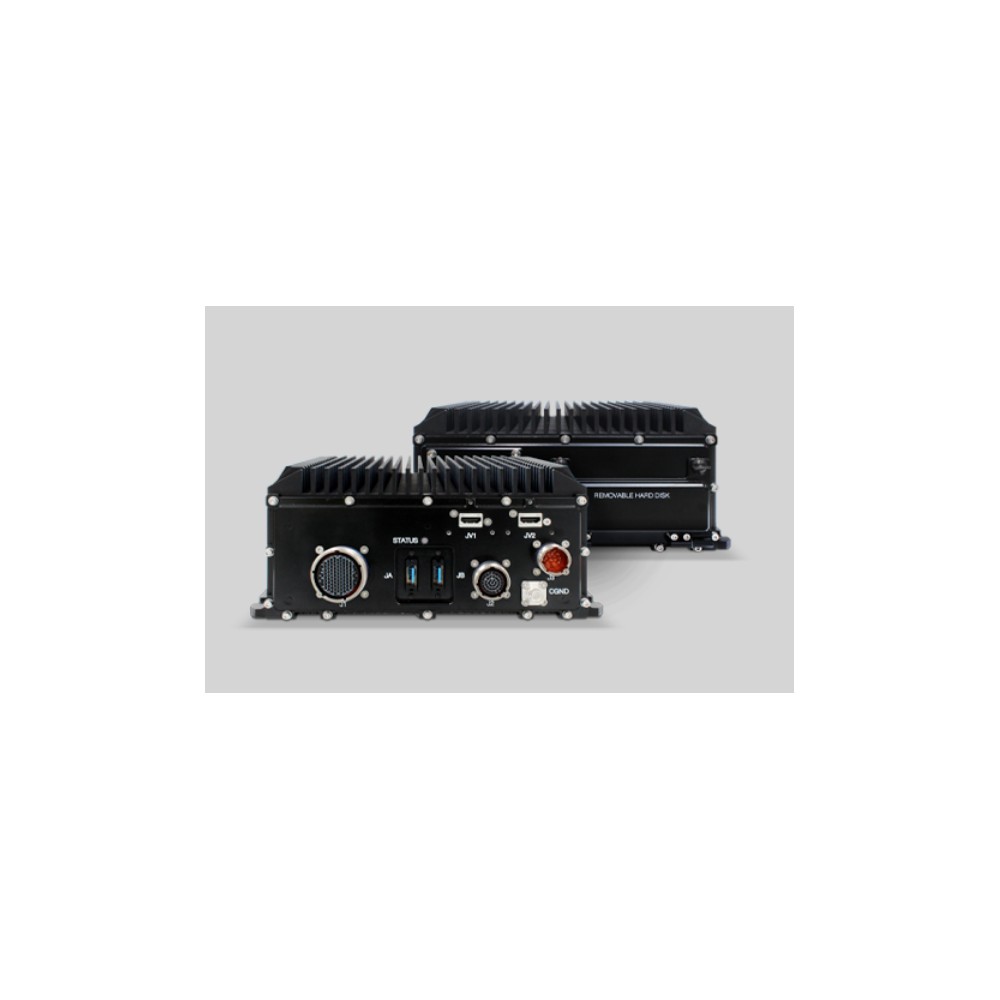

AWS EVO – Advanced Mission Computer with Dual Removable Disk
AWS EVO – Advanced Mission Computer with Dual Removable Disk
AWS EVO – Advanced Mission Computer with Dual Removable Disk
AWS EVO – Advanced Mission Computer with Dual Removable Disk
Brand:
GOMA Rugged Solutions

AWS EVO – Advanced Mission Computer with Dual Removable Disk

AWS – Mission Computer with Single Removable Disk

The AWS EVO Advanced Mission Computer is a next-generation rugged embedded computing platform designed for high-performance edge computing, multimedia processing, and mission-critical applications in aerospace, defense, and industrial environments.

It builds on the standard AWS platform with more powerful processing (up to 11th Gen Intel® Xeon®) and dual removable storage, enabling higher data throughput, redundancy, and secure data handling. Its fanless, SWaP-C optimized design ensures reliable operation in extreme conditions without requiring external airflow

Read moreShow less
Request for Quote
Add to wishlist
Share
Description

Key Features

  • Next-gen high-performance processing
    Supports up to 11th Gen Intel® Xeon® W (8-core) or 9th Gen Xeon® E processors for heavy workloads and real-time processing.
  • Dual removable secure storage
    • 2× hot-swappable 2.5” SATA SSDs (with secure erase)
    • 1× removable CFast card
      Enables data redundancy, fast extraction, and mission security.
  • Fanless rugged design
    Fully sealed system with no moving parts, improving reliability in harsh environments.
  • SWaP-C optimized platform
    Compact, lightweight, and power-efficient for constrained deployments.
  • Triple display support
    2× HDMI + 1× VGA for simultaneous multi-screen operations.
  • RAID-capable storage architecture
    Dual SATA ports with RAID support for enhanced data protection and performance.
  • Extensive I/O connectivity
    Includes Ethernet, USB, serial, audio, and discrete I/O for system integration.
  • Expandable architecture
    MiniPCIe slot supports additional modules (e.g., avionics interfaces like MIL-STD-1553 or ARINC-429).
  • Military & aerospace compliance
    Meets MIL-STD-810G and RTCA/DO-160G standards for environmental durability.

Key Specifications

Processing & Memory

  • CPU Options:
    • 11th Gen Intel® Xeon® W-11865MRE (8 cores / 16 threads)
    • 9th Gen Intel® Xeon® E-2276ML (6 cores / 12 threads)
  • Memory:
    • Up to 64GB DDR4 (dual-channel, ECC supported depending on CPU)

Graphics & Display

  • GPU: Integrated Intel® graphics
  • Outputs:
    • 2× HDMI
    • 1× VGA
  • Supports 3 simultaneous displays

Storage

  • 2× removable 2.5” SATA SSD (hot-swappable, secure erase)
  • 1× removable CFast card
  • 1× internal mSATA slot
  • RAID support (SATA)

I/O & Connectivity

  • Ethernet: 4× Gigabit LAN
  • USB:
    • 2× USB 3.0
    • 4× USB 2.0
  • Serial: 4× RS-232 / RS-422 / RS-485
  • Audio: Line-in / Line-out
  • PS/2: Keyboard & mouse
  • Expansion: MiniPCIe slot + discrete I/O

Power

  • Input: 28V nominal (15–36 VDC range, MIL-STD-704F compliant)
  • Consumption: ~80W
  • Protection features:
    • Over-voltage
    • Over-current
    • Transient protection
  • Power hold-up: up to 50 ms

Mechanical

  • Dimensions: 256 × 203 × 116 mm
  • Weight: ~5.3 kg
  • Cooling: Fanless
  • Connectors: MIL-DTL-38999 circular connectors

Environmental

  • Operating temperature: -45°C to +70°C
  • Storage: -40°C to +85°C
  • Altitude: up to 25,000 ft
  • Humidity: up to 95%
  • Shock: 6g (operational), 20g crash safety
  • Vibration: qualified for rotary and fixed-wing aircraft
  • Compliance: MIL-STD-810G, RTCA/DO-160G
