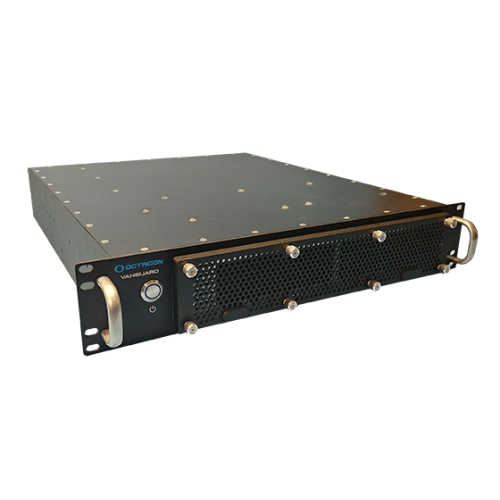

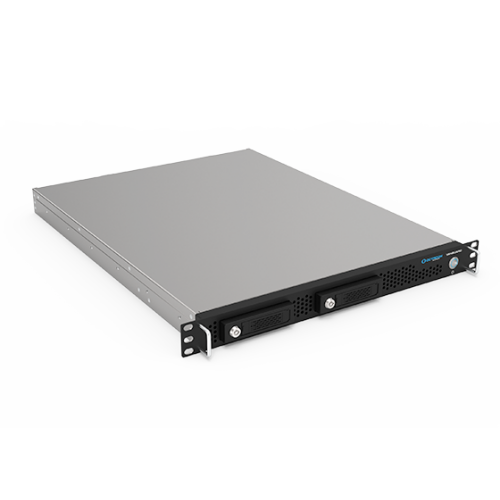

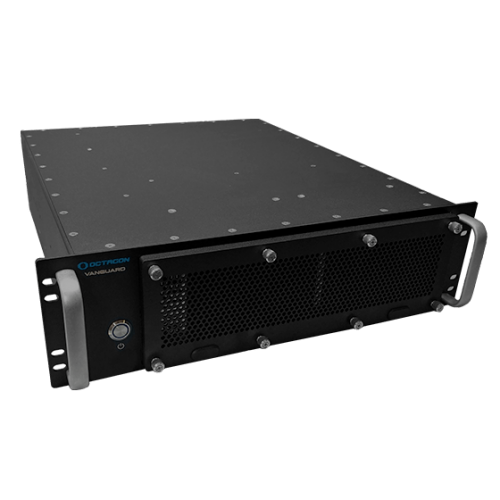

VANGUARD - Rugged Server

Extremely Rugged

Designed with heavy-duty machined aluminum alloy, using overlapped extrusions for superior torsional strength to combat harsh shock & vibration to MIL-STD-810 requirements. Also, built with EMC/EMI compliance to MIL-STD-461.

Versatile Platform

Flexible architecture to address server requirements from compute-heavy to high-storage density applications.

Proven Performance

Combining the latest generation scalable Intel Xeon processors with the latest GPU technologies to meet the challenges for high performance processing and graphics, maximum throughput, and system flexibility.

Highly Reliable

Designed with redundancies to ensure operational reliability. Data integrity is assured with MegaRAID controllers and CacheVault backup. Cooling and airflow are optimized for longevity and dual-redundant power supplies assures sustained operation.

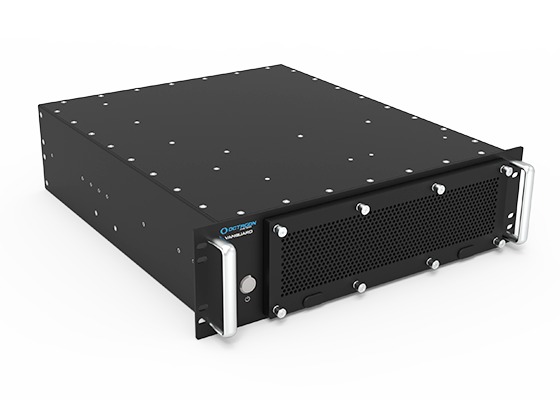

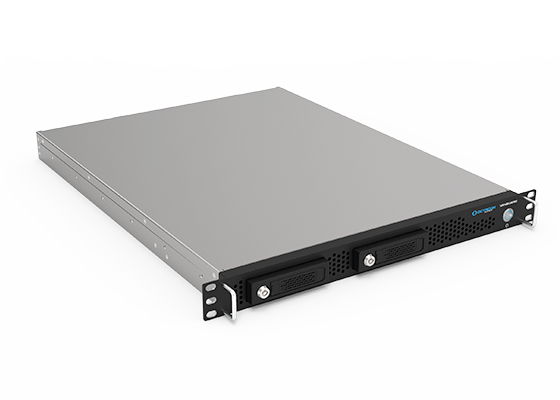

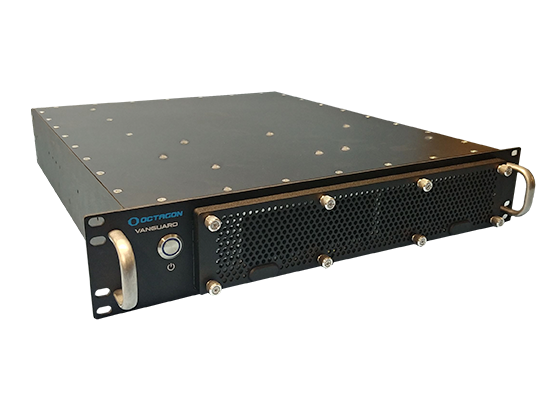

Available in 1U, 2U, 3U sizes.

Contact us for more information.

Key Specifications:

VANGUARD 1U	VANGUARD 2U	VANGUARD 3U
Latest generation scalable Intel® Xeon© processing options Fully featured, dual socketed system board Hot-swappable, front panel accessible storage bays for up to eight (8) 2.5” drives High performance R/W optimization with data security (quick erase / security erase / destroy / write protect) SSD/SAS options Hot-swap, dual-redundant, wide-range AC input power supply Six (6) removable, high reliability, high velocity fans 19” rackmount with custom rugged slider options MIL-STD-810, MIL-STD-167, MIL-STD-461 qualifications Made in Canada & USA	Latest generation scalable Intel® Xeon®processing options Fully featured, dual-socketed, shock isolated system board Hot-swappable, front panel accessible storage bays for up to fourteen (14) 2.5” drives with slim optical drive support High performance R/W optimization with data security (quick erase / security erase / destroy / write protect) SSD/SAS options Hot-swap, dual-redundant, wide-range AC input power supply Up to four (4) removable, high reliability, high velocity fans with optional air filters for dust ingress protection 19” rackmount with custom rugged slider options in various depths MIL-STD-810, MIL-STD-167, MIL-STD-461 qualifications Made in Canada & USA	Latest generation of Intel® Scalable Xeon© processors Fully featured, dual socketed, shock isolated system board with 6-slots of PCIe expansion with robust card retention Hot-Swap storage bays with up to thirty (30) 2.5” hot-swappable devices, with slim optical drive support, all front panel accessible High performance R/W optimization with data security (Quick Erase/Security Erase/Destroy/Write Protect) SSD Options Hot-swap, dual-redundant 650W wide-range AC input power supplies Three (3) removable, high-reliability, high velocity fans with optional air filters for dust ingress protection Short depth (20-inch), 19” rackmount with rugged sliders Customizable EMI-shielded Rear IO Panels Innovative EMC shielding for standard I/O cabling MIL-STD-810G, MIL-STD-167, MIL-STD-461F qualifications Made in Canada & USA
