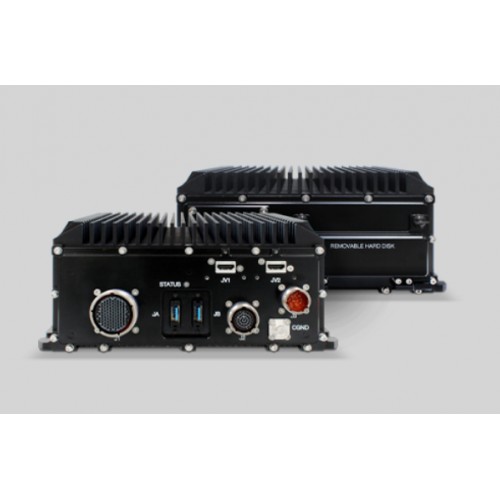

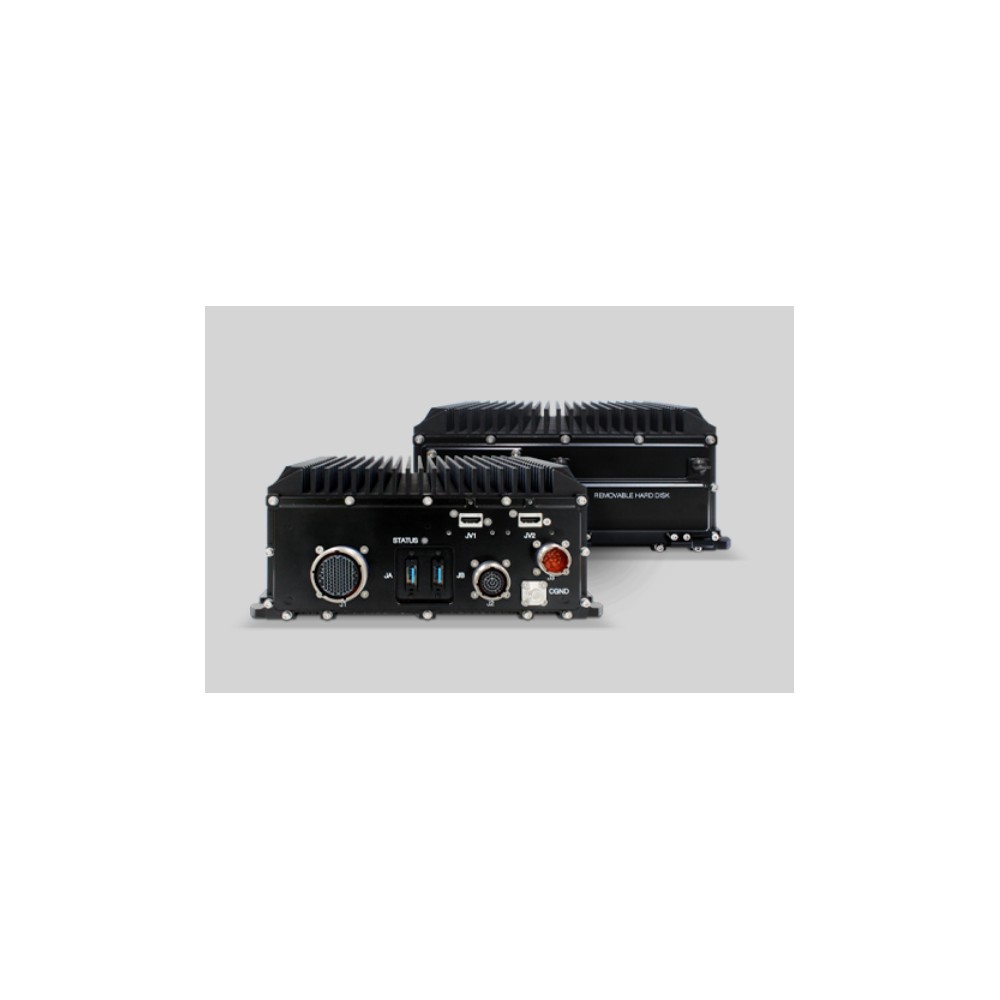

Key Features

• High-performance processing with 11th Gen Intel® Xeon® W (8-core) CPU
• Real-time video capability with HD-SDI input (up to 1080p30 capture)
• Dual removable storage with hot-swappable 2.5” SSDs and secure erase
• Fanless rugged design – no external airflow required
• SWaP-C optimised for compact, efficient deployment
• Dual display support via HDMI and VGA outputs
• Extensive connectivity including 4x Gigabit Ethernet, USB, serial, and SATA with RAID
• Front-accessible CFast slot for additional removable storage
• MIL-STD-810G & RTCA/DO-160G compliant for harsh environments
• Power protection features including over-voltage, over-current, and transient protection

Key Specifications

Processor & Memory

• CPU: 11th Gen Intel® Xeon® W-11865MRE (8C/16T, 2.6 GHz)
• Memory: Up to 64GB DDR4 (dual-channel, ECC/non-ECC supported)

Video & Display

• Input: 1x HD-SDI (up to 1080p30)
• Outputs: 1x HDMI, 1x VGA (dual independent displays)

Storage

• 2x removable 2.5” SATA SSD (hot-swappable, secure erase)
• 1x front-accessible CFast slot

Connectivity & I/O

• Ethernet: 4x Gigabit LAN ports
• USB: 2x USB 3.0, 4x USB 2.0
• Serial: 4x RS232/RS422/RS485 ports
• Additional: PS/2, audio in/out, SATA with RAID support

Power

• Input: 28V nominal (15–36 VDC range)
• Consumption: ~80W
• Protection: Over-voltage, over-current, transient protection
• Power hold-up: Up to 50ms interruption tolerance

Mechanical

• Dimensions: 256 x 203 x 116 mm
• Weight: 5.3 kg
• Cooling: Fanless

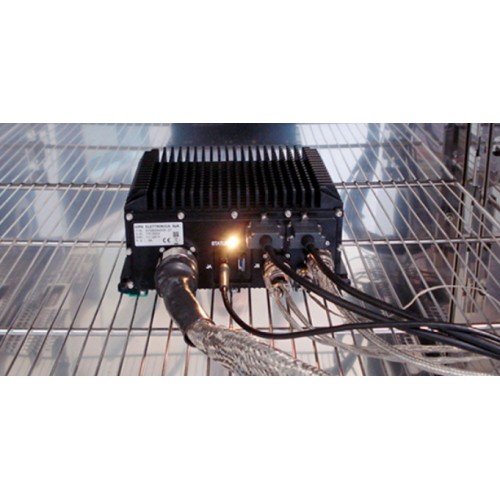

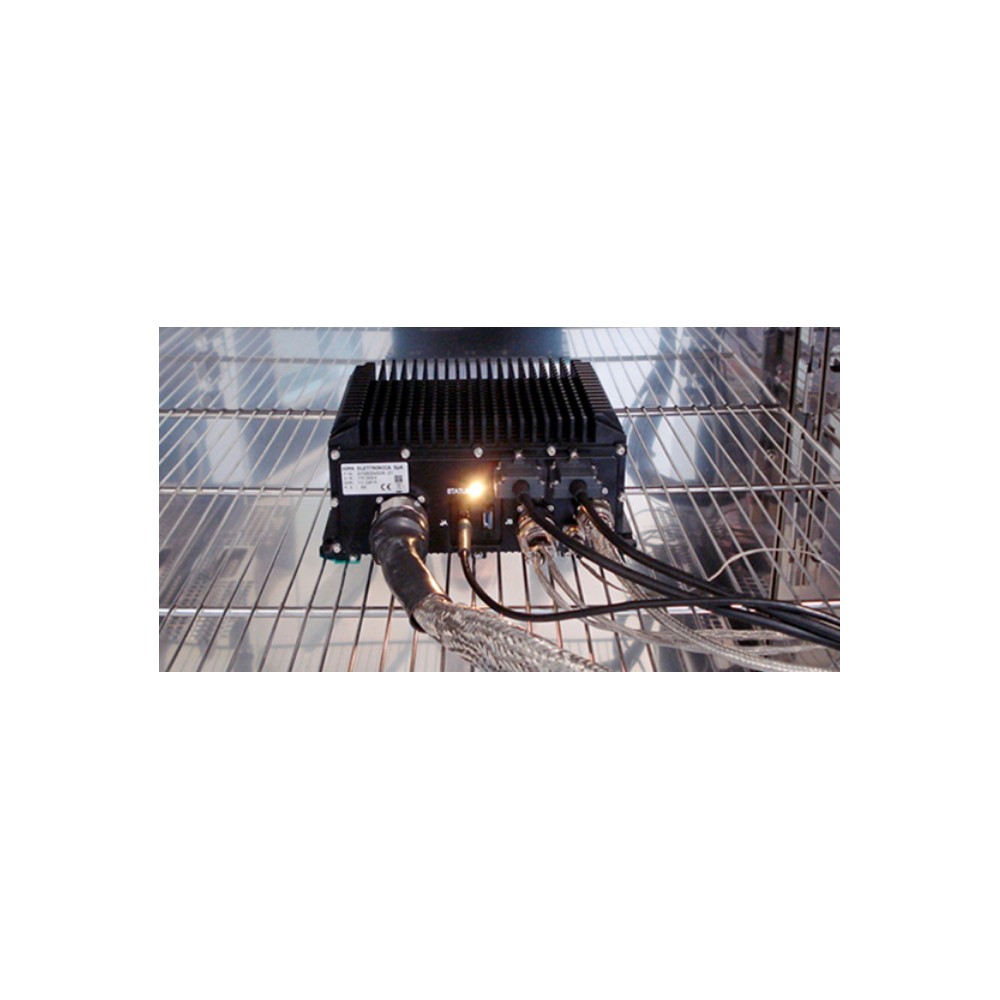

Environmental

• Operating Temp: -45°C to +70°C
• Storage Temp: -40°C to +85°C
• Humidity: Up to 95%
• Shock/Vibration: MIL & RTCA compliant
• Altitude: Up to 25,000 ft
• Certifications: MIL-STD-810G, RTCA/DO-160G
