Brand:

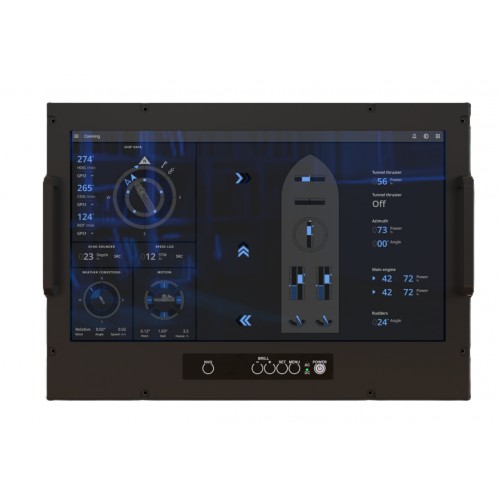

Wave II 24" NVIS (MIL) HB multi touch

The Wave II 24″ NVIS (MIL) HB Multi-Touch is a rugged high-brightness display designed for demanding military applications. Compliant with MIL-STD-3009 NVIS Green B, it provides reliable visibility when operating with military-grade night vision systems, while its durable construction and multitouch interface support mission-critical operations.

Key Features

NVIS-ready operation for military missions requiring night vision compatibility
Dual-mode functionality allows seamless switching between standard and NVIS operation
Mission-critical reliability for demanding defence and tactical environments
Enhanced readability through optical bonding and anti-reflective treatment
Intuitive user interaction with responsive multitouch capability
Flexible system integration for vehicle, command-and-control and defence platforms
Ruggedised design engineered to withstand harsh operational conditions
Modular architecture enabling configuration to meet different platform requirements

Key Specifications

Display Size: 24″
Resolution: 1920 × 1080 Full HD
Brightness: 25–1,000 cd/m²
Contrast Ratio: 5000:1
Touch: 10-point PCAP Multitouch
NVIS Compliance: MIL-STD-3009, NVIS Green B
Military Standards: MIL-STD-461G / MIL-STD-810G
Operating Temperature: -15°C to +70°C
Power Supply: 18–36 VDC
Power Consumption: Approx. 76 W
Protection: IP66 front protection
Dimensions: 574 × 341 × 78 mm
Weight: 7.5 kg net / 10.6 kg gross
