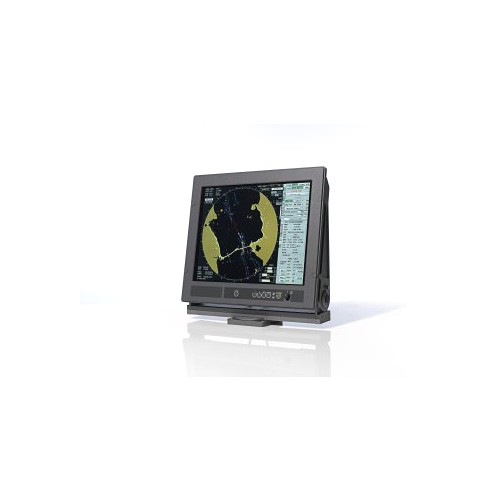

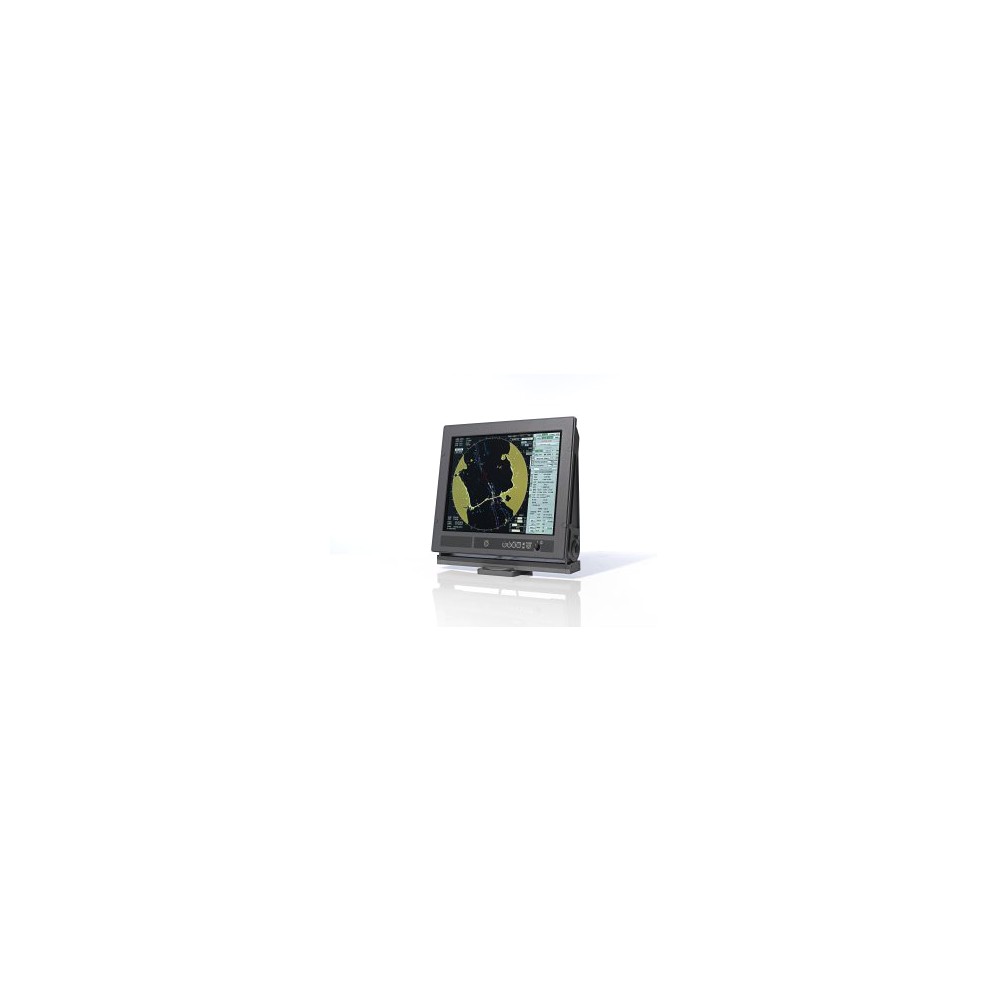

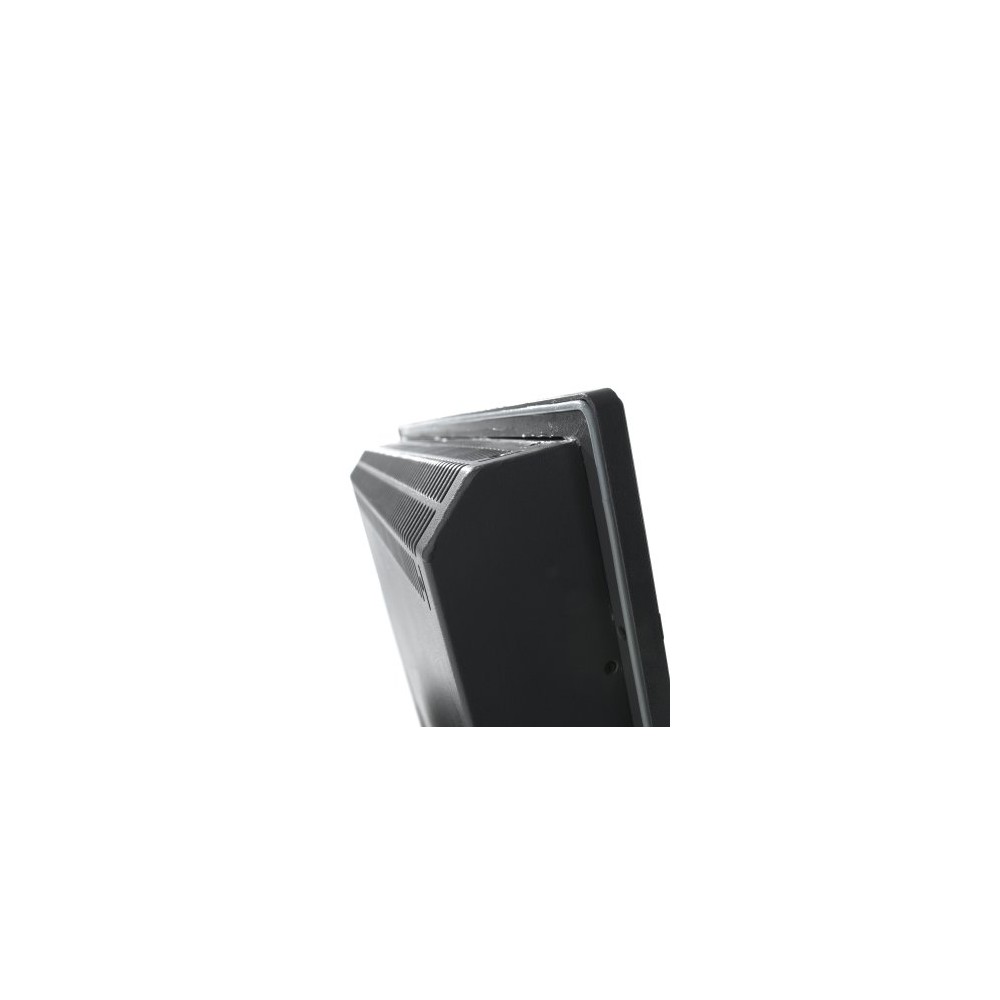

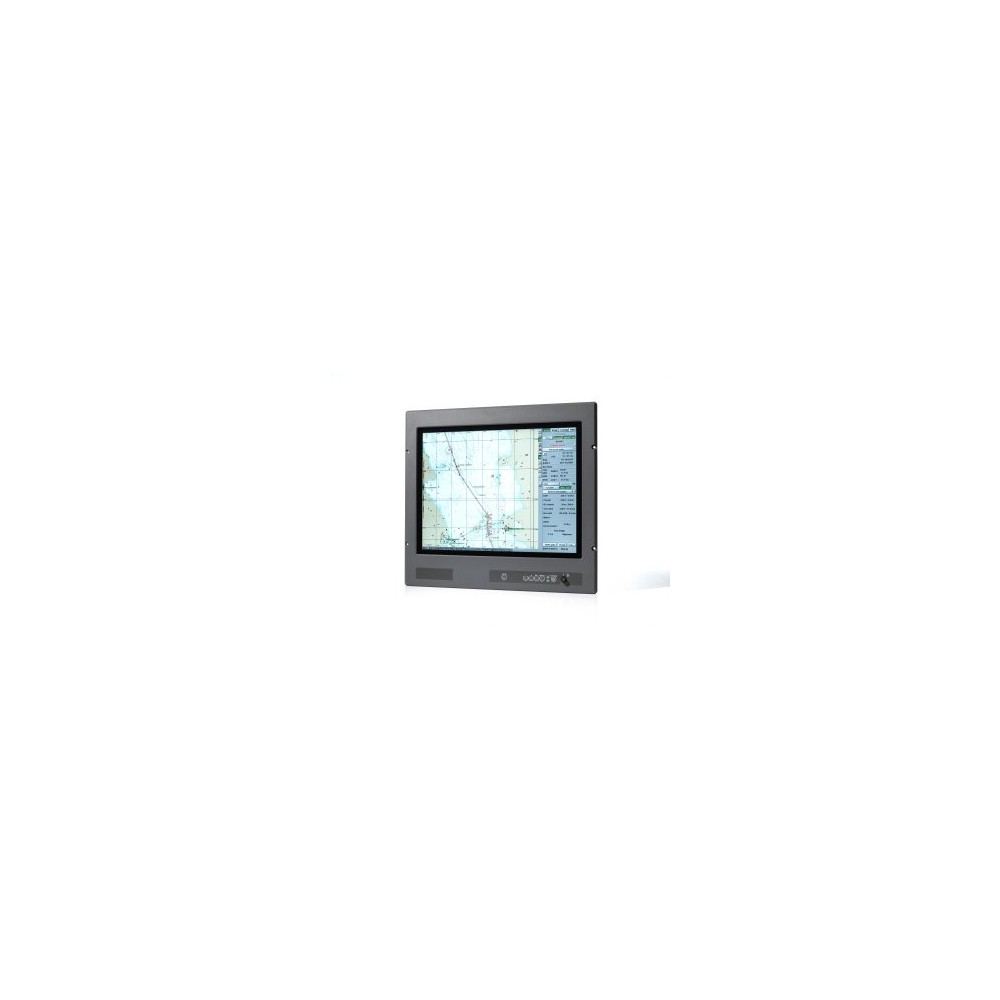

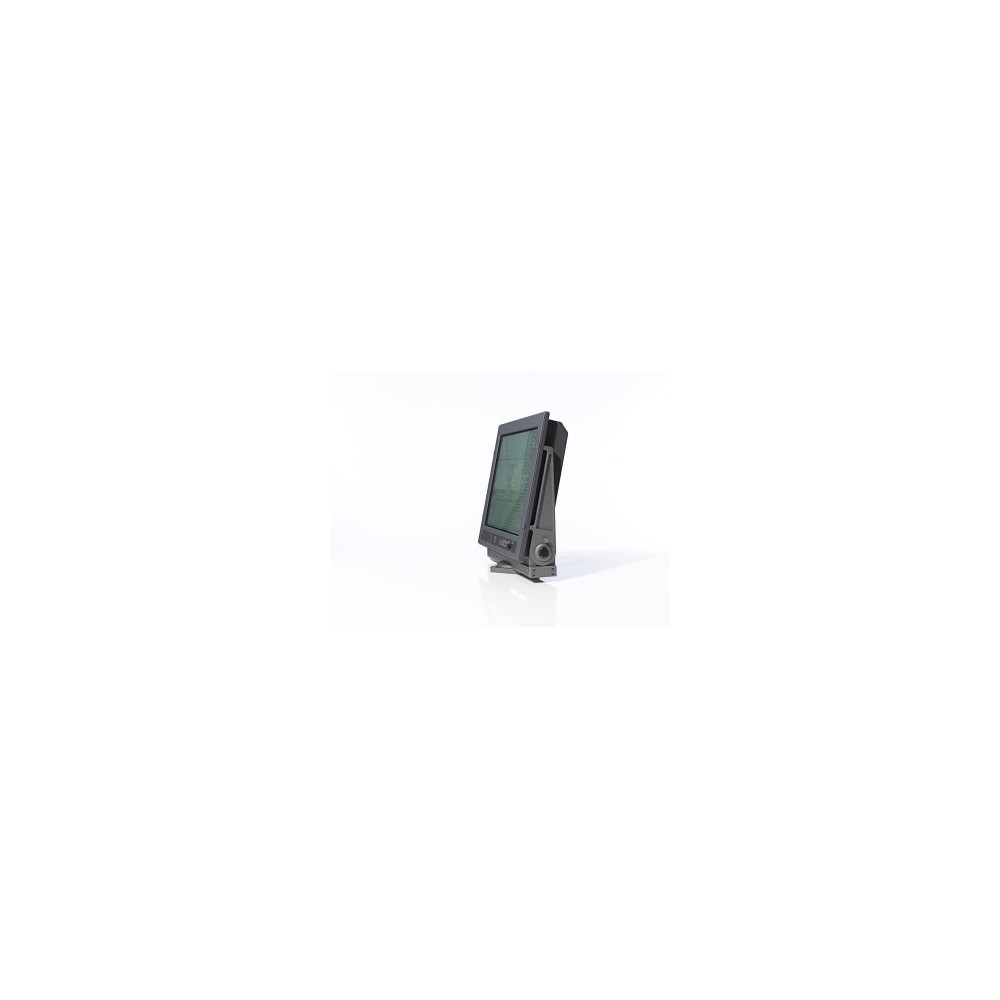

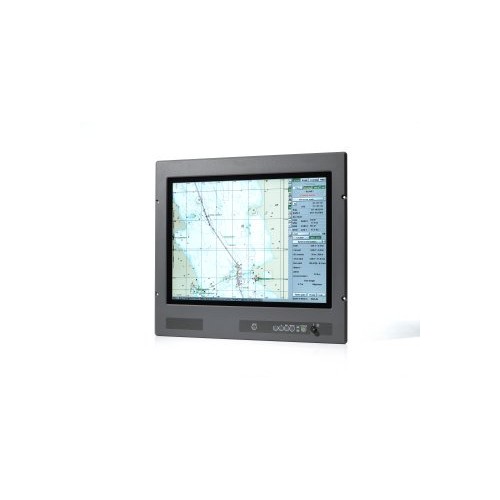

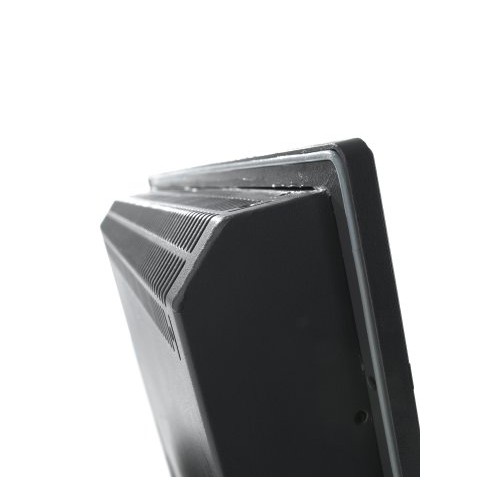

SeaLine 19"

The SeaLine 19″ MK3 is a rugged marine TFT LCD monitor designed for reliable operation in demanding maritime environments. Its modular design and flexible mounting options make it well suited for retrofit applications and integration into existing marine systems.

Key Features

Rugged marine-grade design for demanding operational environments
Retrofit-friendly architecture for easy integration into existing systems
Modular configuration supporting different installation requirements
Flexible mounting options for console and standalone installations
Integrated dimming control for comfortable viewing in varying conditions
Dual AC/DC power capability for flexible deployment
Long-life LED backlighting for dependable long-term operation
Marine-certified design suitable for navigation and bridge applications
Optional accessories including stand, turntable and sunshade

Key Specifications

Display Size: 19″
Resolution: 1,280 × 1,024
Brightness: 300 cd/m²
Contrast Ratio: 1,500:1
Power Supply: 115/230 VAC & 24 VDC
Operating Temperature: -15°C to +55°C
Protection: IP66 / IP67
Dimensions: 470 × 417 × 70 mm
Weight: 10.9 kg
Standards: IEC 60945, IEC 61174, IEC 60936 & IACS E10
