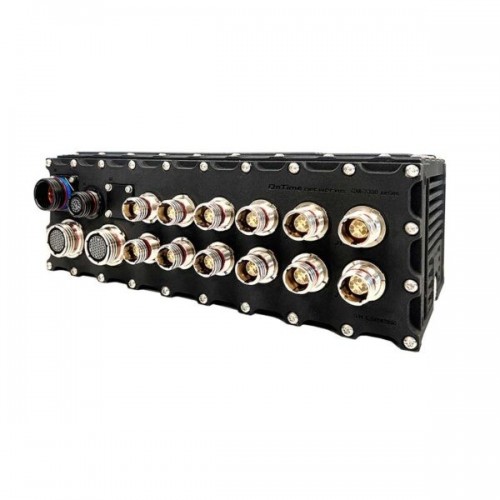

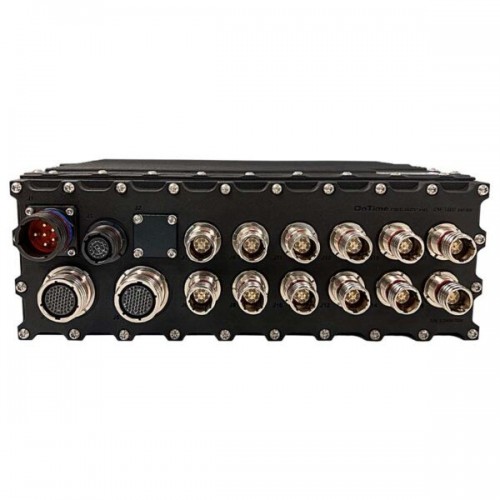

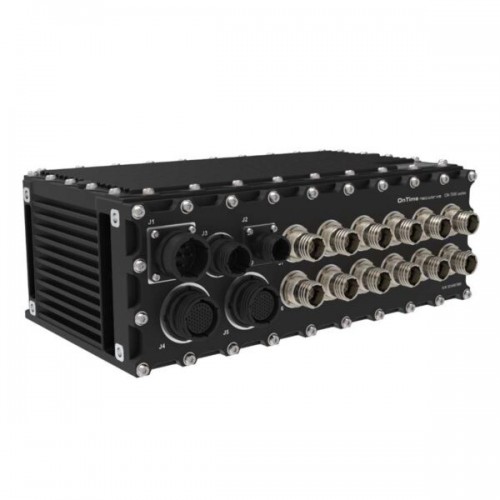

CM-7000-MIL SERIES

The CM-7000 Series contains a PTP 1588 Grand Master CLock (GMC) with PTP version translation (v1/v2) support with an external time source as time base (e.g. GNSS or IRIG-B 002 (DC)). The CM-7000 Series is a Time-Sensitive Networking (TSN) switch, where TSN can be enabled on a per-port basis.

Key Features

• 2x 55 pins D38999 for 12×10/100/1000BASE-T, and 12 TVuCOM for 12 x 10GBASE-T
• 28VDC (22-32VDC)
• Approved for military environmental and EMC requirements.
• Time-Sensitive Networking (TSN) for deterministic real-time communication including:
  – Time Aware Shaper (TAS)
  – Cut-through packet forwarding
  – Frame pre-emption
  – generalized Precision Time Protocol (gPTP)
  – Per-Stream Filtering and Policing (PSFP)
  – Frame Replication and Elimination for Reliability (FRER)
• PTP 1588 Grand Master Clock (GMC) with an accuracy better than 30nanoseconds with PTP version translation (v1/v2) support
• External time base (e.g. GNSS)
• PPS or IRIG-B (DC) input
• Network redundancy based on MSTP/RSTP/STP
• Network management: Web, telnet, CLI and SNMP v1/v2/v3
• Multicast filtering: IGMP snooping or static multicast filters.
• IEEE802.1Q VLAN
• Event notification: through Syslog and SNMP trap
• Wide operating temperature range
• Enhanced Watch dog features
• Port mirroring
• IEEE802.1x, access control
• Event notification through Syslog and SNMP trap
• Data Zeroization Support
• ITAR free
