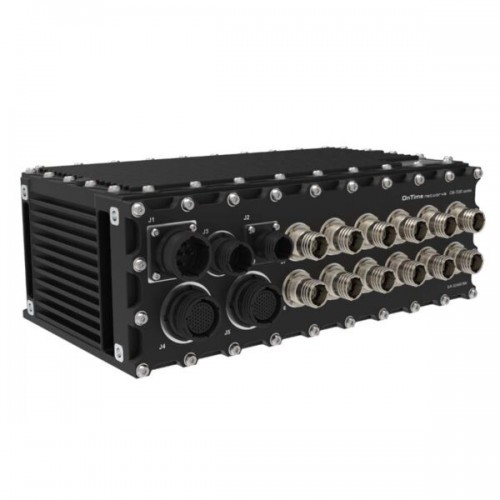

CR-7000-MIL SERIES

The CR-7028F4-MIL is based on a separate router board that is equipped with the OnTime Networks router and firewall package providing routing speeds up to 800Mbps and supports a wide range of router protocols including multicast routing.

Standard Features

• PTP: gPTP TC/SC
• Port Connector: 2x D38999 connector for 12x 1G-T, 12 TVuCOM for 12x 10G-T, and 4x 4x 10G-SR in one MT38999
• Form Factor: CR-7000 box.
• Power: 28VDC
• Power Connector Type: 6 pin D38999
• Power Holdup – 100ms

Key Features

• 2x 55 pins D38999 for 12×10/100/1000BASE-T, and 12 TVuCOM for 12 x 10GBASE-T
•  28VDC (22-32VDC)
• Approved for military environmental and EMC requirements.
• Time-Sensitive Networking (TSN) for deterministic real-time communication including:
  – Time Aware Shaper (TAS)
  – Cut-through packet forwarding
  – Frame pre-emption
  – Generalized Precision Time Protocol (gPTP)
  – Per-Stream Filtering and Policing (PSFP)
  – Frame Replication and Elimination for Reliability (FRER)
• Time synchronization output interfaces such asGNSS emulation, PPS, IRIG-B 002 (DC) or IRIGB 122 (AM)
• Network redundancy based on MSTP/RSTP/STP
• Network management: Web, telnet, CLI and SNMP v1/v2/v3
• Multicast filtering: IGMP snooping or static multicast filters.
• IEEE802.1Q VLAN
• Event notification: through Syslog and SNMP trap Wide operating temperature range
• Enhanced Watch dog features
• Port mirroring
• IEEE802.1x, access control
• Event notification through Syslog and SNMP trap
• Data Zeroization Support
• ITAR free
