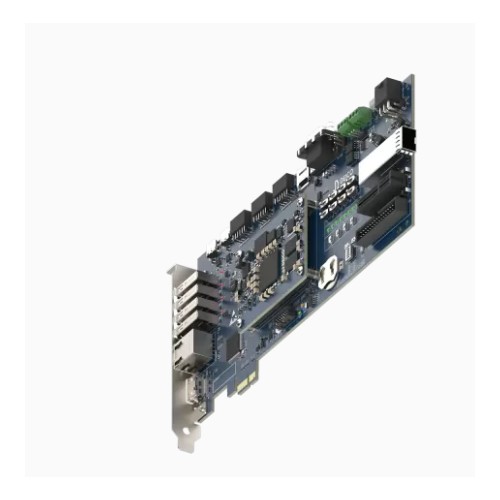

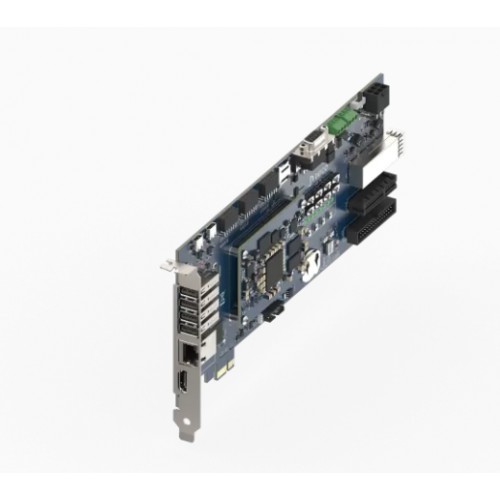

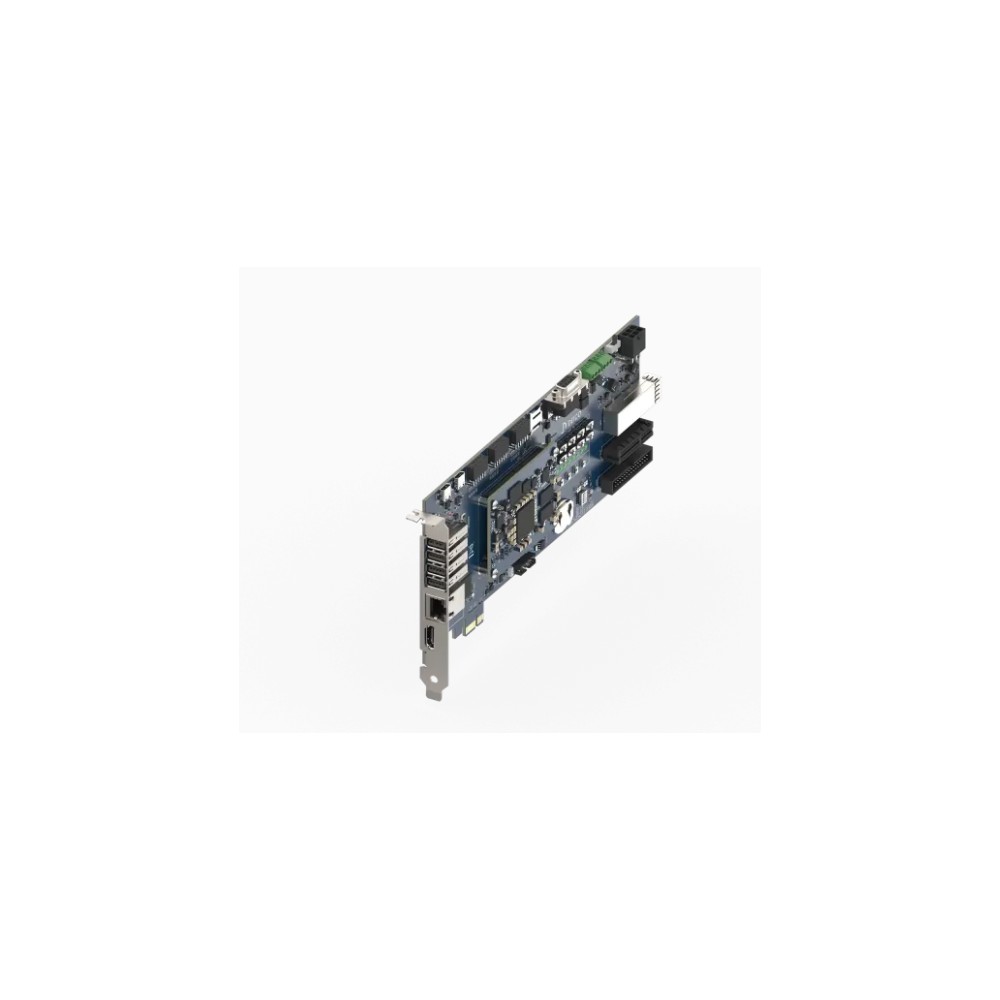

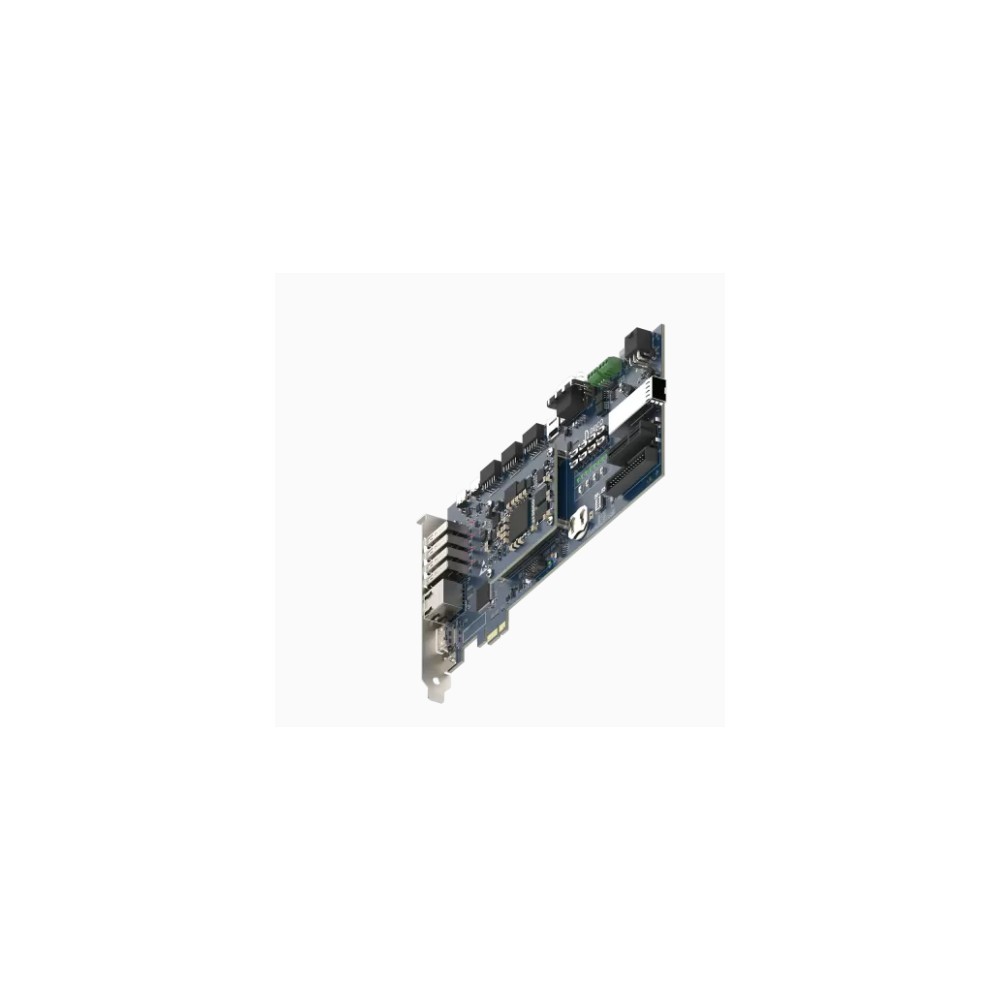

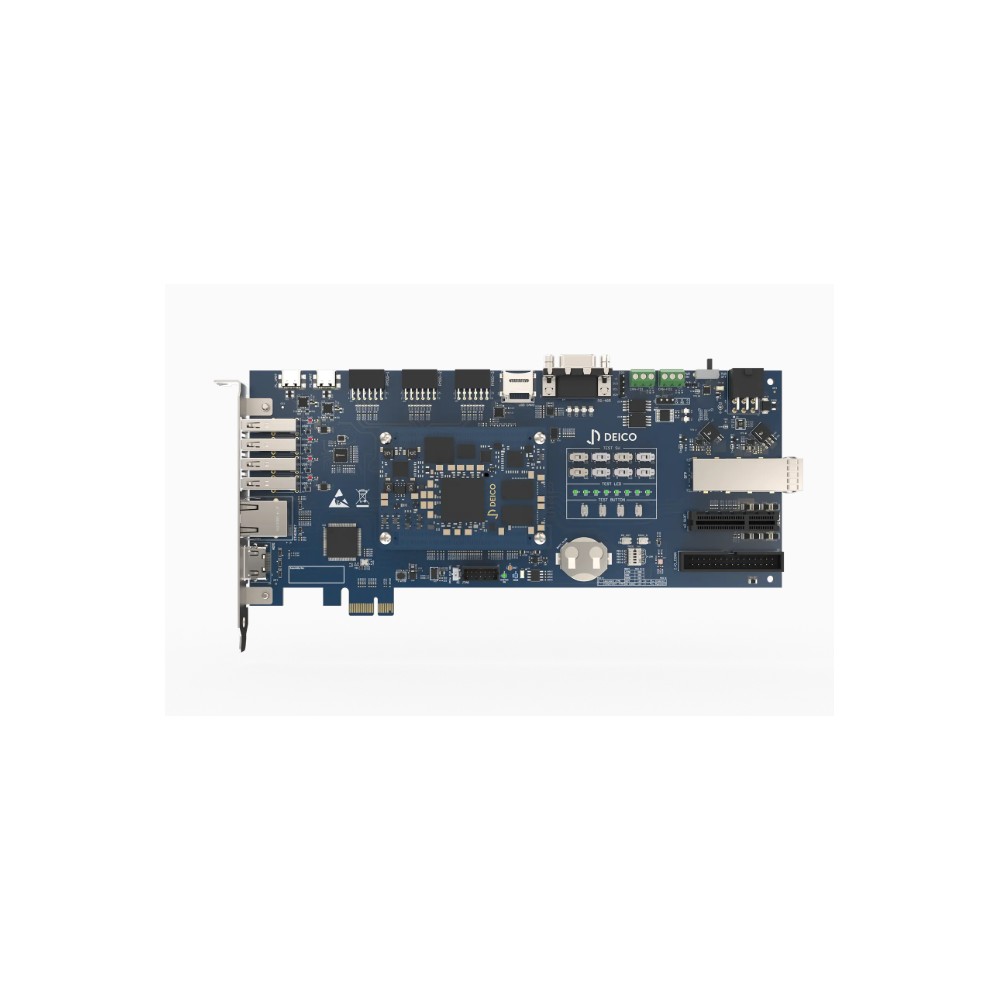

Zynq SoM Carrier Board
The Zynq SoM Carrier Board is designed for integration with the Zynq System on Module (SoM). It provides a comprehensive set of peripherals and high-speed interfaces for embedded control and data acquisition applications.
The carrier board hosts a Xilinx Zynq-7015 SoC, which integrates a dual-core ARM Cortex-A9 processor and programmable FPGA logic. The processor runs at 667 MHz and supports real-time control and parallel processing tasks.
Specifications:
-
Memory & Storage
- 1 GB DDR SDRAM (2 x 512 MB, 32-bit interface)
- 8 GB eMMC flash
- 32 MB QSPI flash
- 1 x µSD card socket
-
Communication Interfaces
- 1 x 10/100/1000 Mb/s ethernet
- 4 x USB 2.0 host
- 2 x CAN FD
- 1 x UART-to-USB (Type-C)
- 1 x RS-232 (2.54 mm, 3-pin header)
- 1 x RS-485 (DSUB-9)
- 1 x I2C header (2.54 mm, 4-pin)
-
Video & Display
- 1 x HDMI interface (with support for HDMI 1.4 features)
- Audio Return Channel (ARC)
- 3D video support
- 12-bit deep color @ 1080p
- RGB, YCbCr, and DDR formats
-
Expansion & I/O
- 3 x PMOD connectors
- 1 x SFP transceiver cage
- 2 x PCIe interface:
- x2 Lane Root Complex
- x1 Lane Endpoint
- 1 x 30-pin GPIO header (2.54 mm pitch)
- 2 x 140-pin board-to-board connectors (0.8 mm pitch)
-
User Interface & Debug
- 8 x test LEDs
- 8 x test switches
- 4 x test buttons
- 2 x user buttons: PS_RST, PROG_B
- 3 x status LEDs: FPGA_DONE, FPGA_INIT, PG
- 1 x 14-pin JTAG header (2.00 mm pitch)
- DIP switches for boot mode and PCIe configuration
-
Power & Thermal
- Input voltage: 12 V (via 3 x 2 pin ATX connector)
- PCB: 10-layer, 1.6 mm thickness
- Operating temperature: 0 °C – 40 °C
