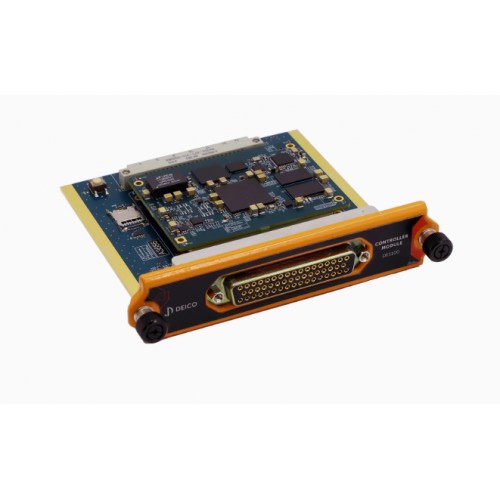

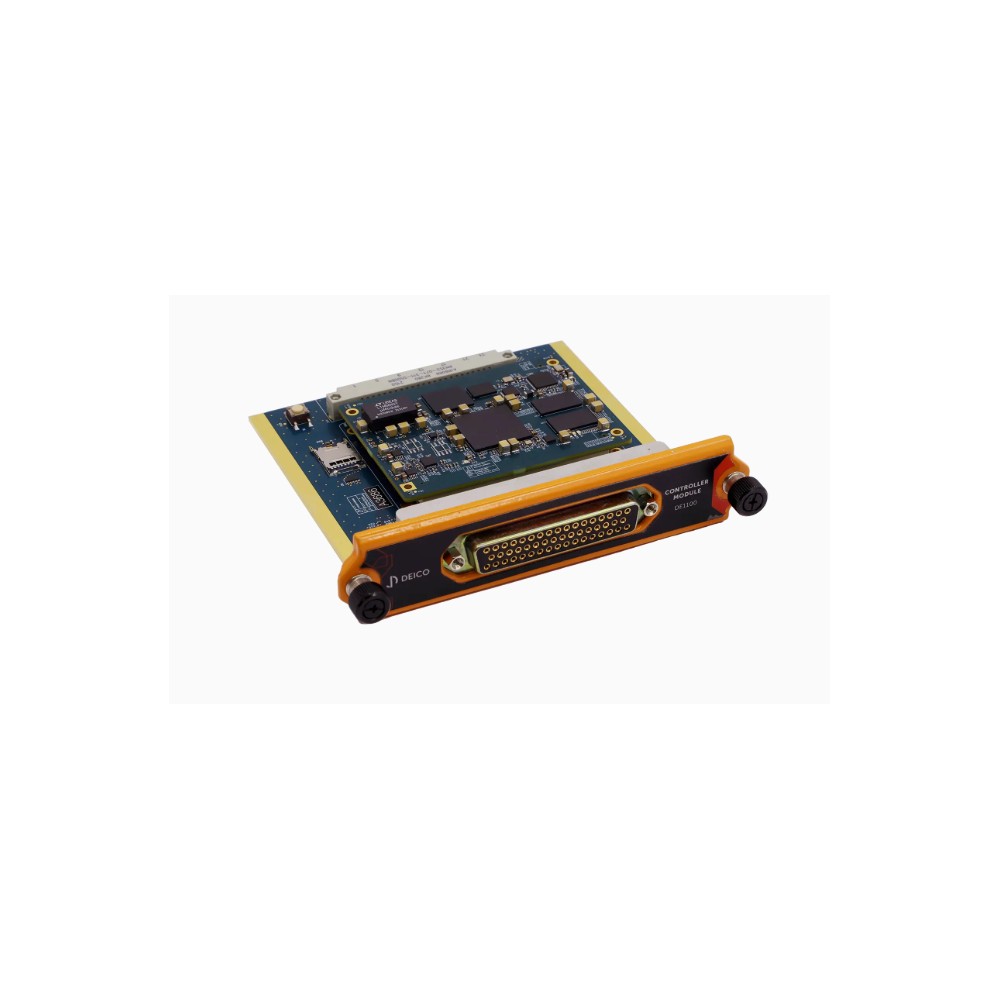

Rugged DAQ System Controller Module
The Rugged DAQ System Controller Module is built to control data acquisition chassis and connected modules with reliability in harsh environments. Powered by a Zynq processor, it offers fast processing for real-time control tasks. It supports five communication interfaces for versatile connectivity:
- RS-232/422/485 – 3 channels for industrial serial communication
- Ethernet – 1 channel for high-speed network access
- USB 2.0 – 1 channel for peripheral integration
This combination of interfaces enables integration into a wide range of data acquisition systems. As a result, engineers can streamline connectivity between modules, sensors, and host systems without additional hardware.
Key features
- 3-channel independently configurable RS-232/422/485 interfaces
- Up to 10 Mbps data rate for RS-422/485
- Up to 1 Mbps data rate for RS-232
- Programmable via JTAG and modular program blocks
- 1 Gbps Ethernet interface
- Simultaneous control of up to 8 modules
Rugged DAQ System Controller Module Zynq is compliant with MIL-STD-461, MIL-STD-704E, MIL-STD-810G Change 1, and RTCA DO-160 standards.
Areas of application
- Data acquisition module control
- Signal processing
- Real-time signal monitoring
