Brand:
Condor NVA2102xX

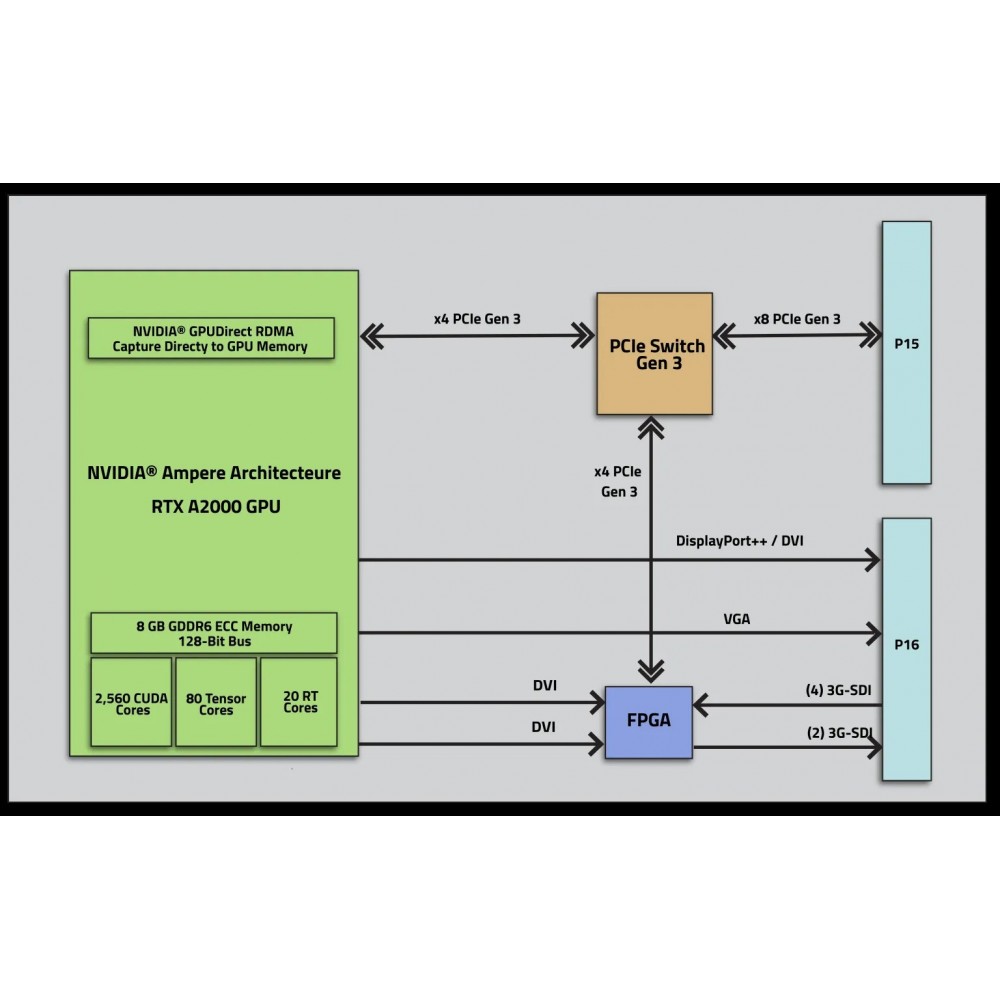

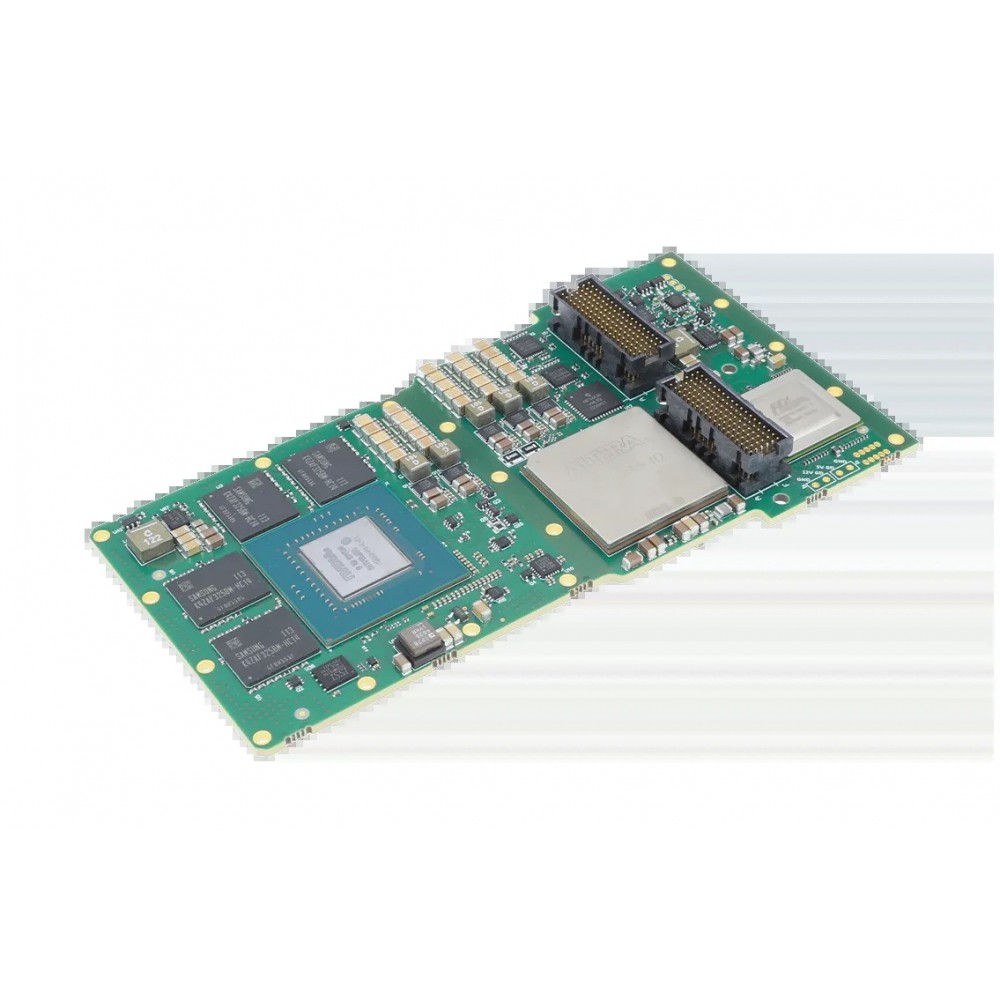

The Condor™ NVA2102xX is a rugged high-performance XMC graphics and GPGPU card that captures 3G-SDI raw frame-by-frame video and metadata with exceptionally low latency. This all-in-one solution provides the ability to simultaneously capture, process, display, encode, decode, and stream video data while supporting CUDA and OpenCL based GPGPU computing, AI processing, deep learning and H.265/H.264 encoding & decoding. The Condor NVA2102xX is designed with the NVIDIA® RTX A2000 GPU supporting 8 GB of GDDR6 graphics memory with error correction code (ECC), 2,560 CUDA® cores, 80 Tensor Cores (third generation), and 20 RT Cores (second generation) for accelerated performance in neural network training and inferencing functions.
| Graphics Processor | NVIDIA RTX A2000 GPU (Ampere Architecture) Supporting DirectX 12, OpenGL 4.5, and Vulkan 1.2 |
| Interface | XMC 1.0 or XMC 2.0 8 Lane PCIe 4.0 |
| Graphics Memory | 8 GB GDDR6 with ECC memory 128-bit Memory Interface up to 192 GB/s Memory Bandwidth |
| Video Inputs | Four 3G-SDI Rear Pn6 XMC I/O. VITA 46.9 x12d+x8d+24s. |
| Video Outputs | One DisplayPort One VGA Two 3G-SDI Rear Pn6 XMC I/O. VITA 46.9 x12d+x8d+24s |
| GPGPU Capabilities | 2560 CUDA Cores. 80 Tensor Cores. 20 RT Cores. Up to 8.25 TFLOPS FP32 Single Floating Point Performance Supports CUDA 11 (Compute Capability 8.6) and CUDA-X OpenCL 1.2 and Shader Model 5.1 H.265 (HEVC) / H.264 (MPEG4/AVC) Hardware Encode & Decode NVIDIA GPUDirect® RDMA, NVENC, NVDEC |
| Power Consumption | 25 - 50 W |
| Operating Temperature (MIL-STD-810) | -40°C to 70°C (Rugged Air Cooled) -40°C to 85°C (Rugged Conduction Cooled) Please refer to the Hardware User Guide for details on temperature/performance characterization. |
| Vibration (MIL-STD-810) | 0.1 g²/Hz |
| Shock (MIL-STD-810) | 40 g |
| Humidity (MIL-STD-810) | 95% Without Condensation |
| Software & Platform Support | Windows or Linux on x86 VPX & PCIe |
