Brand:
Data Bus Products Corporation

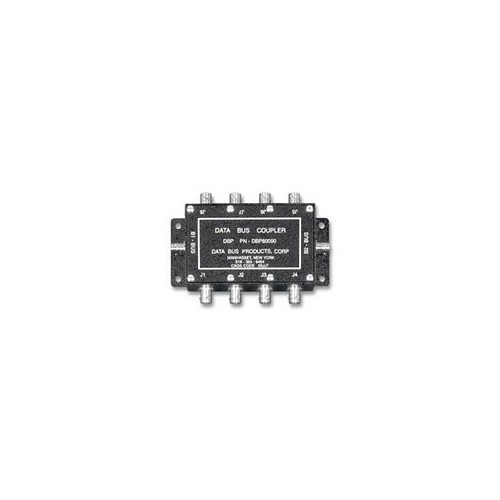

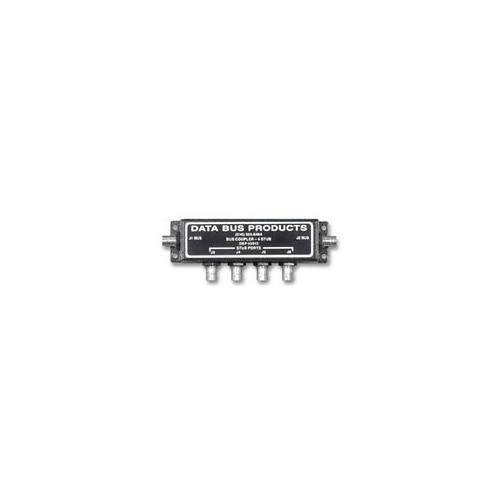

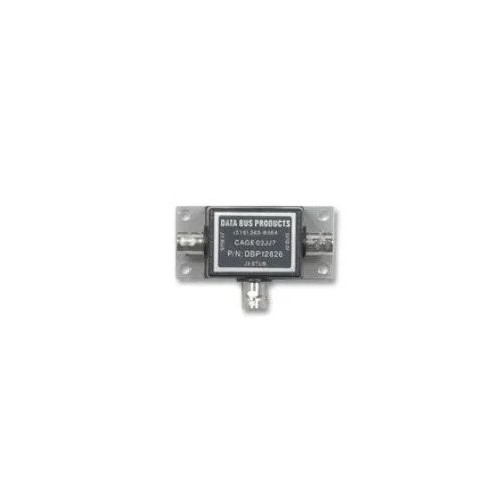

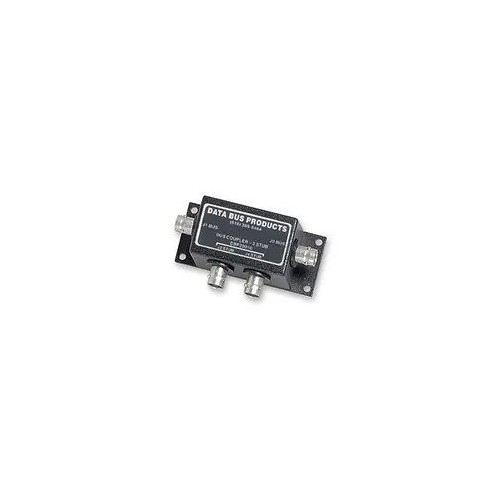

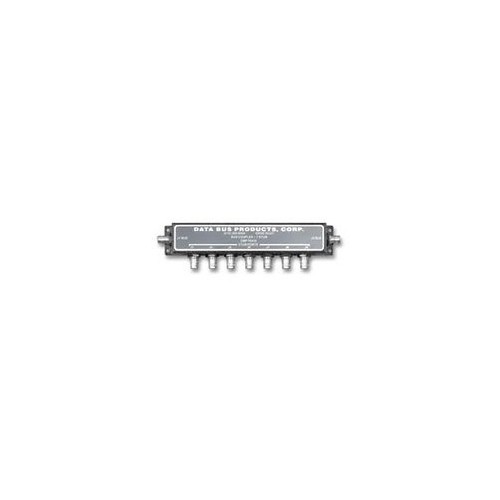

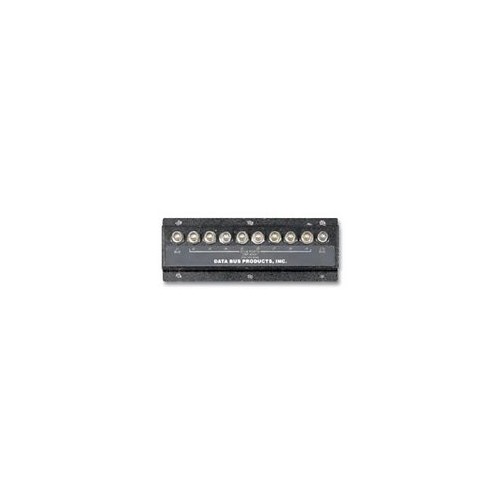

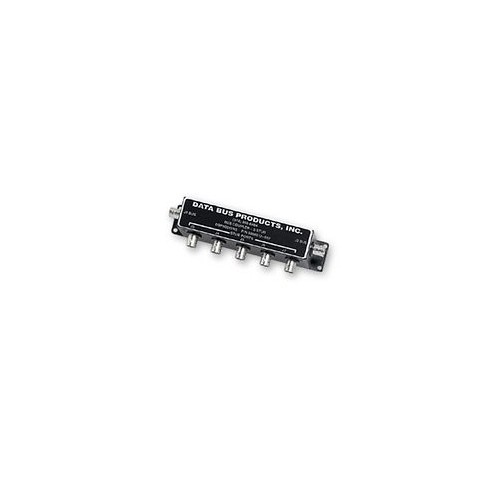

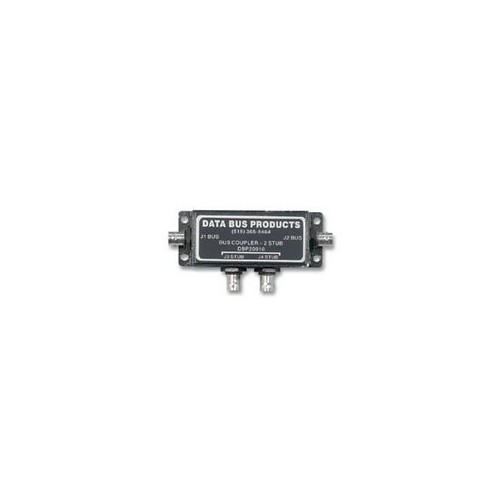

BJ76/77 3 Lug Bayonet Miniature

ComEth4420e

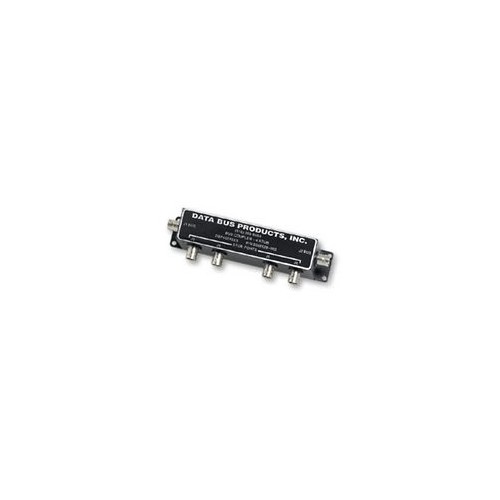

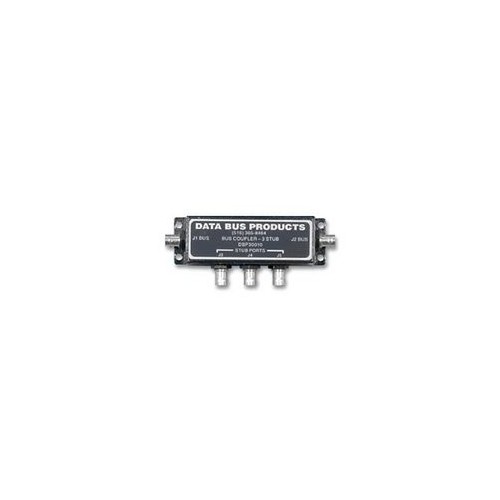

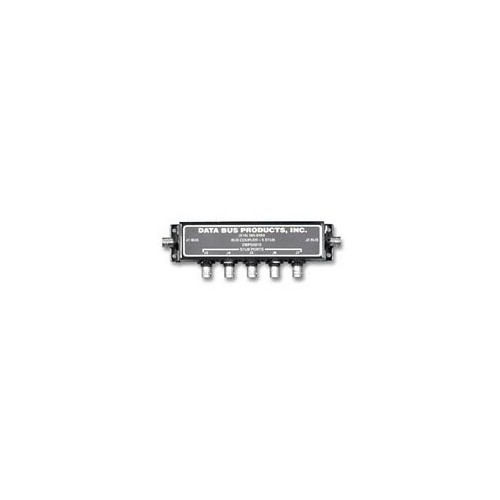

Single Stub Inline Coupler

Box/ Flange Mounting Couplers - MIL-STD- 1553

  • Comes in different variation from Single Stub to Eight Stub

Features

  • Rugged Construction
  • Multiple Standard Packages
  • Off the Shelf Availability

Options

  • Connectorization
  • Package Customization
  • Internal Terminations
Read moreShow less
Request for Quote
Add to wishlist
Share
Description

Electrical Specifications: MIL-STD-1553B

Common Mode Rejection: -55.0dB MAX @ 1.0MHz

DROOP: 20% MAX (250kHz)

Overtshoot & Ringing: ± 1.0V Peak (250kHz) Square Wave with 100nS max rise & fall time.

Stub Voltage: 1.0V to 14.0V P-P; line to line; signal voltage, transformer coupling

Input Impedance of Bus: 3000 OHMS min. (75kHz - 1.0MHz0), Stub with open circuit

Fault Protection: 58.5 OHMS ± 2% Resistor in series with transformer winding on bus side.

Resistor Value: 1 watt IAW MIL-R-39017, R1-R2 (75% Zo). Nominal line impedance of bus (Zo): 78 OHMS

Read moreShow less
Specifications
Coupler
Request For Catalog
