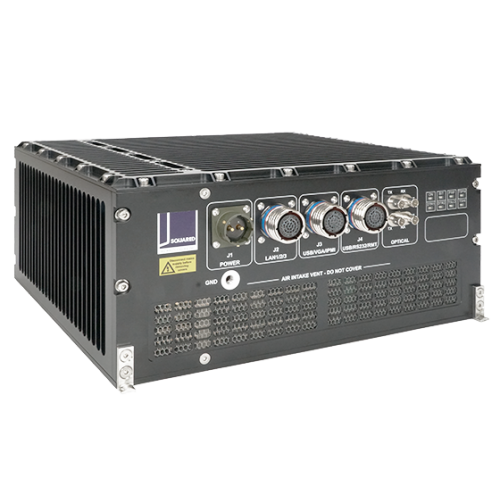

CUTLASS - Rugged Server

COTS Compatible

Designed to be compatible with standard ATX motherboards to support a variety of COTS storage options. The CUTLASS was architected to enable low-cost, rapid deployments of reliable high-performance computing in space-limited applications.

Rugged and Flexible I/O Options

Built with militarized connectors for secure-locking of wire harnesses under heavy shock and vibration and to withstand dust, sand, and water. These connectors can be configured to support peripheral devices across various I/O ports such as audio, digital, ethernet, fiber optics, video, serial, and USB.

Expansive and Flexible Architecture

With multiple expansion slots of various form factors (M.2, mPCIe, PCIe, Disk-on-Module), the CUTLASS platform offers enhanced functionality options such as high-performance graphics cards for AI and video processing, reflective memory node cards for high-speed multi-cast networking, and avionics interfaces (MIL-STD-1553 and ARINC 429).

Contact us for more information.

Key Specifications:

• Superior torsional strength aluminum alloy server
• Designed to support COTS Flex ATX for low cost rapid deployment
• Supports variety of COTS storage devices
• PCIe expansion options
• Intel® Xeon® Broadwell-DE processor
• D-1587 16-Core, 32 Threads
• Up to 128GB ECC RDIMM DDR4
• 2133MHz
• Mini PCI-E (mSATA support),
• M.2 PCI-E 3.0, M-Keyed and
• Disk-on-Module (DOM)
• Storage Options
• Dual 10G SFP+ and 6 x GbE LAN
• Dual USB 3.0 ports, 2 SuperDOM,
• 1 COM, TPM 2.0 header, GPIO and
• SMbus headers
• 2-slots of PCIe 3.0 expansion
• and robust card retention
• Machined aeronautical aluminum
• alloy for EMC/EMI compliance to
• MIL-STD-461F and weight, 4kg
• Fully qualified MIL-STD-810G
• @ 55,000 ft. altitude
• +18-36VDC Operation with
• programmable Temperature
• Supervisory Unit (TSU) for
• operation from -25 to +55°C
• In-line EMI/EMC filter + VICOR
• filter front-end module
• Front-to-Back air cooled
• enclosure with high-reliability fans
• 8 front panel LED indicators
• driven by the TSU & system board
• Depth: 286 mm (11.25”)
• Width: 310 mm (12.2”)
• Height: 141 mm (5.55”)
• Made in Canada & USA
