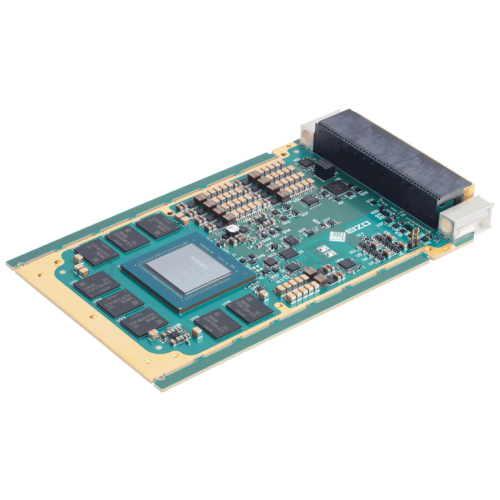

Condor GR5-A2000

3U VPX Graphics & GPGPU Card with DisplayPort & Single-Link DVI-D Outputs

Read moreShow less

The Condor GR5-A2000 is a rugged OpenVPX 3U form factor card based on NVIDIA Ampere architecture and the NVIDIA RTX™ platform. This highly integrated “chip-down” graphics and GPGPU card meets strict data integrity requirements for mission-critical applications with uncompromised computing accuracy and reliability.


  • Military
  • Avionics
  • Surveillance
  • UAV
  • Naval
  • ISR
  • Embedded Systems

AI-enabled Hardware for HPEC Systems

  Powered by NVIDIA Ampere architecture, the Condor GR5-A2000 delivers real-time GPGPU processing and GPU-based computing with 2560 NVIDIA® CUDA® cores, 20 RT cores (2nd generation), and 80 Tensor cores (3rd generation). This single-slot solution provides embedded systems with 2x the throughput for matrix operations than previous generations for intensive workloads such as Artificial Intelligence (AI), multi-sensor processing, neural network training, and in simulation environments.

  In addition, the Condor GR5-A2000 supports PCI Express Gen 4 (4x or 8x lane), which provides double the bandwidth than previous models, resulting in increased data-transfer speeds for applications such as Digital Signal Processing (DSP), Signals Intelligence (SIGINT), 3D rendering, Electronic Warfare (EW), and within unmanned systems. The Condor GR5-A2000 delivers real-time performance for encoding applications with dedicated H.265/H.264 encode and decode engines. It is available in both SOSA and VITA standards and has multiple I/O configurations.

Read moreShow less
