Condor GR4-A4500

SOSA-Aligned 3U VPX Graphics & GPGPU Card

Read moreShow less
Description

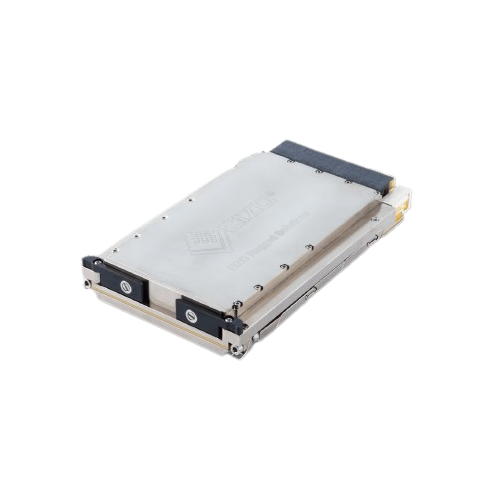

The Condor GR4-A4500 is a rugged OpenVPX 3U form factor embedded video capture and GPGPU card based on NVIDIA®

Ampere architecture and the NVIDIA RTX™ platform. The Condor GR4-A4500 3U VPX card is designed using the NVIDIA

Ampere A4500 GPU, which supports 16 GB GDDR6 graphics memory with Error Correction Code (ECC), 46 RT Cores, 184

Tensor Cores, and 5,888 CUDA® cores.

The Condor GR4-A4500 is a powerful GPGPU solution that empowers real-time mission computing systems with AI at the

Edge support, PCI Express Gen 4, Error Correction Code (ECC) memory, and delivers up to 17.66 TFLOPS FP32 single floating

point performance. This card features a configurable PCIe Gen4 switch, dedicated H.265/H.264 encode and decode engines,

and is available in air cooled or conduction cooled versions. The Condor GR4-A4500 supports NVIDIA GPUDirect Remote

Direct Memory Access (RDMA) and SDI VANC KLV metadata insertion and extraction, making it ideal for applications involving

low latency video capture/display in the ISR and Signals Intelligence (SIGINT) markets.

Condor GR4-A4500 Specifications

  • Interface Software & Platform Support
  • 3U VPX Form Factor Windows or Linux on x86
  • 1” Pitch (Conduction Cooled)
  • PCIe Gen 4 (x4 or x8 support)
  • Graphics Processor Operating Temperature (MIL-STD-810)
  • NVIDIA RTX A4500 GPU (Ampere Architecture) -40°C to 85°C (Rugged Conduction Cooled)
  • DirectX 12, OpenGL 4.5, and Vulkan 1.2
  • Graphics Memory Power
  • 16 GB GDDR6 with Error Correction Code 3.3V, 5V, and 12V
  • 256-bit Memory Interface 50 - 90W
  • 512 GB/s Memory Bandwidth
  • GPGPU Capabilities Vibration (MIL-STD-810)
  • 5,888 CUDA Cores. 184 Tensor Cores. 46 RT Cores. 0.1 g²/Hz
  • Up to 17.66 TFLOPS FP32 Single Floating Point Performance
  • Supports CUDA, CUDA-X, OpenCLTM and Shader Model 5.1
  • H.265 (HEVC) / H.264 (MPEG4/AVC) Hardware Encode & Decode Shock (MIL-STD-810)
  • NVIDIA GPUDirect® RDMA, NVENC, NVDEC 40 g
  • Video Inputs Humidity (MIL-STD-810)
  • Four 3G-SDI/HD-SDI 95% Without Condensation
  • Video Outputs
  • Four 3G-SDI/HD-SDI
  • One DisplayPort
Read moreShow less
