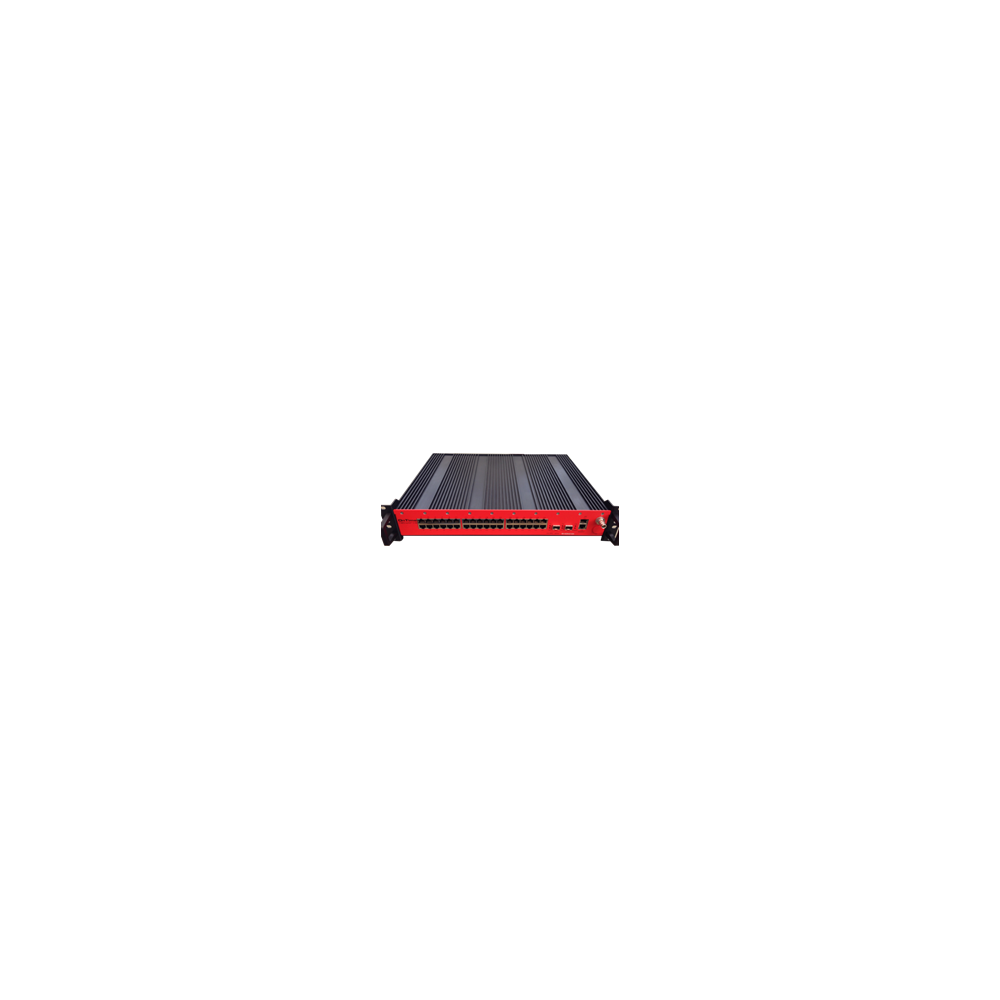

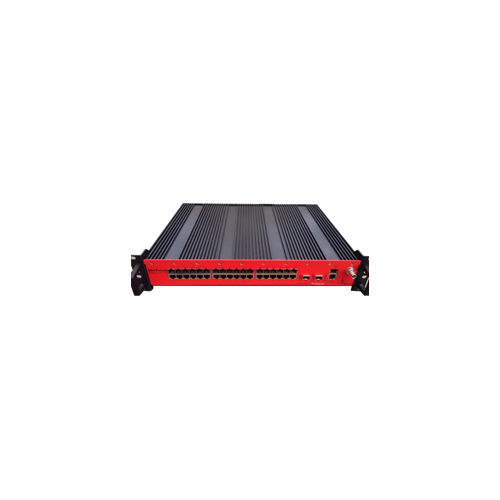

CloudberryAERO CM-2900-RJ45 SERIES

The CloudberryAERO CM-2900-RJ45 Series is a rugged Commercial Off The Shelf (COTS) 36 port Gigabit Ethernet switch with PTP Grand Master Clock support with free running clock as time base optimized for aircraft and military network systems applications.

Featuring advanced Layer 2 networking with 36 ports of non-blocking wire-speed 10/100/1000Mbps connectivity and an integrated management processor, the CM-2900-RJ45 Series enables end nodes to operate with a synchronization accuracy better than 30ns across the operating temperature range: (-15 to +70C).

Featuring RJ45 connectors in an aluminum chassis, the unit serves as an ideal solution for connecting IP-enabled embedded devices in a demanding environment.

The CloudberryAERO CM-2900-RJ45 Series implements the Precision Time Protocol (PTP) according to IEEE 1588 Std 2002 (PTPv1) and IEEE 1588 Std 2008 (PTPv2). With its unique PTP implementation and embedded PTP version translator, the CM-2900-Series allows Slave Clocks of either PTPv1 or PTPv2 to co-exist in the same network.

This fully managed, Layer 2 Gigabit switch provides a powerful set of carrier-grade networking features, including support for IPv4 multicast traffic filtering according to static filters or IGMP snooping, Virtual Local Area Networks (VLANs), port control (speed / mode / statistics, flow control), Quality of Service (QoS) traffic prioritization, Link Aggregation (802.3ad), SNMPv/1/v2/v3 management, secure authentication (802.1X, ACLs, Web/CLI), redundancy (RSTP/MSTP) and port mirroring.

The CloudberryAERO CM-2900-RJ45 Series is tested according to RTCA DO-160G.

To enhance reliability, the unit features military temperature grade components, an isolated power supply that protects against voltage surges, spikes and transients and no moving parts,
